SYT08S05SGC - Ultra-Low Capacitance TVS Protection

Features

  •         Transient protection for super-speed data lines

        IEC 61000-4-2(ESD)       ±15kV (Air)

            ±8kV (Contact)

       Cable Discharge Event (CDE)

  •         ESD protection for super-speed differential signal (above 10Gb/s) channels
  •         Fast turn-on and low clamping voltage
  •         Protects eight data lines
  •         Ultra-low capacitance: 0.20pF Typical @ 0V
  •         Low leakage current: 0.1μA @ VRWM (Typical)
  •         Back-drive protection for power-down mode
  •         Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge

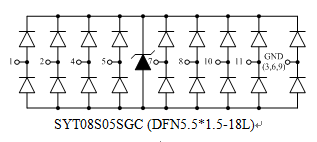

Typical Application

Description

SYT08S05 is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for super-speed data interfaces. With typical capacitance of 0.20pF only, SYT08S05 is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2(ESD), Level 4 (±15kV air, ±8kV contact discharge), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc.



SYT08S05 uses DFN5.5*1.5-18L package. Each SYT08S05 device can protect eight super-speed data lines. The combined features of ultra-low capacitance, small size and high ESD robustness make SYT08S05 ideal for super-speed data ports and high-frequency lines (e.g., HDMI & DVI) applications. The low clamping voltage of the SYT08S05 guarantees a minimum stress on the protected IC.

Applications

  • USB3.1/3.0 Power and Data Line Protection
  • USB3.1/3.0 Type-C
  • HDMI 1.3, 1.4 and 2.0
