SY20095 -

Features

·       Low RDS(ON) for Internal Switches (Top/Bottom):

   260mΩ/170 mΩ

·       2.5-6.5V Input Voltage Range

·       40μA Typical Quiescent Current

·       High Light Load Efficiency

·       1.5MHz Switching Frequency

·       Internal Softstart Limits the Inrush Current

·       100% Dropout Operation

·       RoHS Compliant and Halogen Free

·       Compact Package: DFN2x2-6

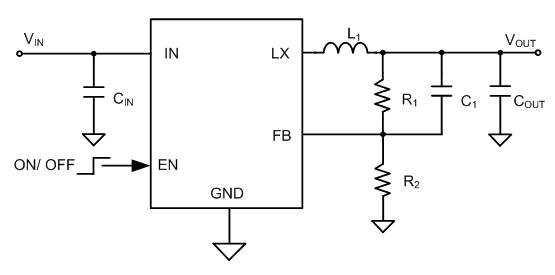

Typical Application

Description

The SY20095 is a high-efficiency 1.5MHz synchronous step-down DC-DC converter capable of delivering up to1Aoutput current. It operates over a wide input voltage range from 2.5V to 6.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Applications

·       Wireless LAN Card

·       DVD Blu-ray Drive

·       USB Datacard
