SY20122B -

Features

·       Low RDS(ON) for Internal Switches (Top/Bottom) 210mohm/130mohm

·       2.5~5.5V Input Voltage Range

·       High Switching Frequency 1.5MHz Minimizes the External Components

·       Internal Soft-start Limits the Inrush Current

·       100% Dropout Operation

·        RoHS Compliant and Halogen Free

·        Output auto Discharge Function

·        Compact Package: DFN1.5x1.5-6

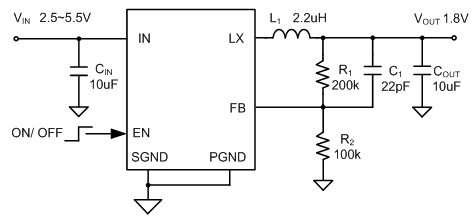

Typical Application

Description

SY20122B is a high efficiency 1.5MHz synchronous step down DC/DC regulator IC capable of delivering up to1.5Aoutput currents. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.

Applications

·       Portable Navigation Device

·       Set Top Box

·       USB Dongle

·       Media Player

·       Smart phone
