SY20208A -

Features

·   2.5~5.5V Input Voltage Range

·   1.5μA Typical Quiescent Current

·   Low RDS(ON) for Internal Switches (Top/Bottom) : 0.4/0.2Ω

·   Typical 450mA Peak Current Limit

·   Internal Soft-start Limits the Inrush Current

·   RoHS Compliant and Halogen Free

·      Compact Package: DFN2x2-8

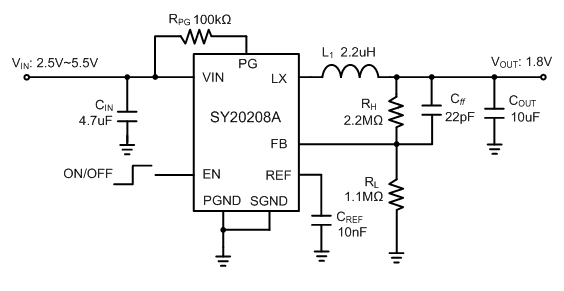

Typical Application

Description

SY20208A is a high efficiency, 1.5µA ultra low quiescent current, synchronous step down DC/DC regulator special designed for one-cell Li-Ion or Li-polymer battery powered applications. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.

Applications

·   Battery Powered Applications

·   Consumer and Portable Medical Products

·      Personal Care Products
