SY20215 -

Features

·       Low RDS(ON) for Internal Switches (Top/Bottom): 45/35mΩ

·       Input Voltage Range: 2.7-5.5V

·       1 MHz Switching Frequency Minimizes the External Components

·       External Adjustable Soft-start Limits the Inrush Current

·       100% Dropout Operation

·       Power Good Indicator

·       RoHS Compliant and Halogen Free

·       Compact Package: DFN3x3-10

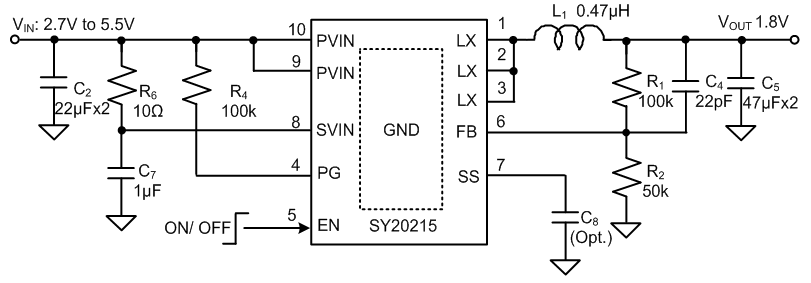

Typical Application

Description

SY20215 is a high-efficiency 1 MHz synchronous step-down DC/DC regulator capable of delivering up to 5A output current. SY20215 operates over a wide input voltage range from 2.7V to 5.5V and integrates the main switch and the synchronous switch with very low RDS(ON) to minimize the conduction losses.



Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency.

Applications

·       LCD TV

·       Access Point Router

·       Notebook PC

·       Server
