SY20226 -

Features

·       Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ

·       3-5.5V Input Voltage Range

·       1.3 MHz Switching Frequency Minimizes the External Components

·       Internal Soft-start Limits the Inrush Current

·       Up to 98% Efficiency

·       0.6V Reference Voltage

·       Shutdown Mode Draws<1µA Supply Current

·       100% Dropout Operation

·       Power Good Indicator

·       OVP/OCP/UVLO/OTP Protections

·       RoHS Compliant and Halogen Free

·       Compact Package: DFN2x2-8

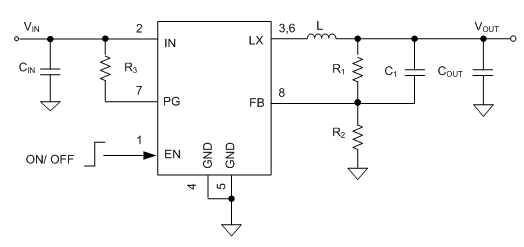

Typical Application

Description

The SY20226 is a high efficiency 1.3 MHz synchronous step-down DC/DC regulator, current mode control IC capable of delivering up to 6A output current. The SY20226 operates over a wide input voltage range from 3V to 5.5V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2x2-8 package perform the optimized BOM cost and reduce external component part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieve with 1.3 MHz switching frequency.


Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1.3 MHz switching frequency.

Applications

·       High Definition Set Top Box

·       LCD TV

·       Access Point Router

·       Mini-notebook PC

·       Net PC
