SY20228 -


·           Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ

·           2.75-6V Input Voltage Range

·           1.2 MHz Switching Frequency Minimizes the External Components

·           Internal Soft-start Limits the Inrush Current

·           Up to 94% Efficiency

·           6A Continuous Output Current Capability

·           Shutdown Mode Draws<0.1µA Supply Current

·           100% Dropout Operation

·           Power Good Indicator

·           OCP/UVLO/OTP Protections

·           RoHS Compliant and Halogen Free

·           Compact Package: DFN2x2-8

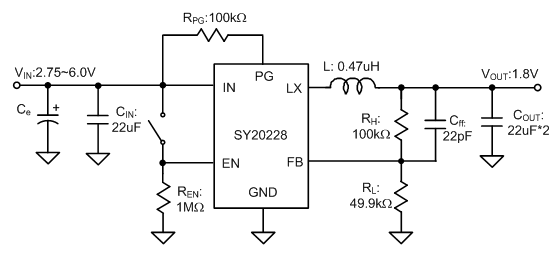

Typical Application


SY20228 is a high efficiency high frequency synchronous step down DC/DC regulator capable of delivering up to 6A output current. It operates over a wide input voltage range from 2.75V to 6V. It integrates main switch and synchronous switch with very low RDS(ON)   to minimize the conduction loss. High integrated solution and DFN2x2-8 package perform the optimized BOM cost and reduce external component part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved.


·           High definition Set Top Box

·           LCD TV

·           Notebook PC
