SY20334 - High Efficiency 1.5MHz, Dual 3A Synchronous Step Down Regulator

Features

·       Low RDS(ON) for internal switches (top/bottom):  105/85mΩ

·       2.7-5.5V input voltage range

·       1.5MHz switching frequency minimizes the external components

·       Internal soft-start limits the inrush current

·       100% dropout operation

·       RoHS Compliant and Halogen Free

·       Compact and thermally enhanced package: DFN3x3-12

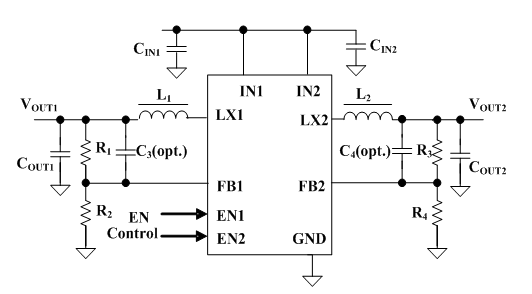

Typical Application

Description

The SY20334 is a dual-output, high-efficiency 1.5MHz synchronous step-down DC-DC IC capable of delivering up to 3A output current per output respectively.  The SY20334 operates over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.



Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1.5MHz switching frequency.

Applications

·       WiFi Card

·       LCD TV

·       GPS

·       Access Point Router

·       Smart Phone
