SY20496 -

Features

·       2V Minimum Input Voltage

·       Adjustable Output Voltage from 2.5V to 5.5V

·       6A Peak Current Limit

·       Input Under Voltage Lockout

·       Load Disconnect During Shutdown

·       Programmable Output Current Limit Protection

·       ±10% Output Current Limit Accuracy

·       Force PWM Mode Selectable

·       Hic-cup Mode for Short Protection

·       Low RDS(ON) (main switch/synchronous switch) at 5.0V Output: 20/40mΩ

·       Output OVP Protection

  ·       Compact Package QFN2x2-10 Package

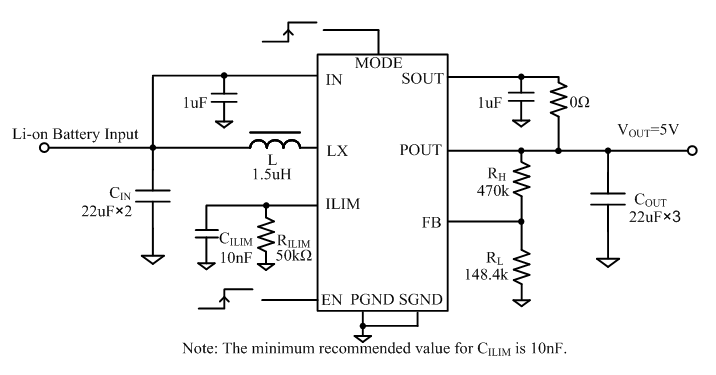

Typical Application

Description

SY20496 is a high efficiency synchronous boost regulator that converts down to 2V input and up to 5.5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. It can disconnect the output from input during the shutdown mode. It can program output current limit by ILIM pin.

Applications

All Single Cell Li or Dual CellBatteryOperated Products as MP-3 Player, PDAs, and Other Portable Equipment.
