SY20611 -

Features

·       Low RDS(ON) for Internal Switches (Top/Bottom): 230mΩ/150mΩ

·       Integrate an Inductor to Minimizes the External Components and PCB Layout Design

·       2.5~5.5V Input Voltage Range

·       1.2A Continuous Output Current Capability

·       High Switching Frequency 3mhz Minimizes the External Components

·       Internal Soft-Start Limits the Inrush Current

·       100% Dropout Operation

·       Rohs Compliant and Halogen Free

·       Output Auto Discharge Function

·       Compact Package: QFN2.5×2-8

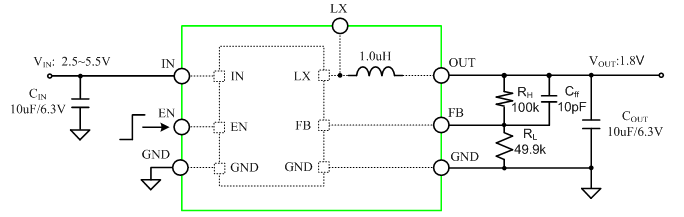

Typical Application

Description

SY20611 is a 3MHz, 1.2A synchronous step-down converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, H=1.0mm). It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Applications

·       Mobile Phone, Smart Phone

·       Bluetooth Headsets

·       Wimax PDA, MID, UMPC

·       Portable Game Console

·       Digital Camera, Camcorder
