SY21113B -

Features

·         Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ

·         4.5-18V Input Voltage Range

·         3A Output Current Capability

·         500 kHz Switching Frequency

·         Instant PWM Architecture to Achieve Fast Transient Responses

·         Cycle-by-cycle Peak Current Limitation

·         Internal Soft-start Limits the Inrush Current

·         Hic-cup Mode Output Short Circuit Protection

·         ±1.5% 0.6V Reference

·         TSOT23-6 Package

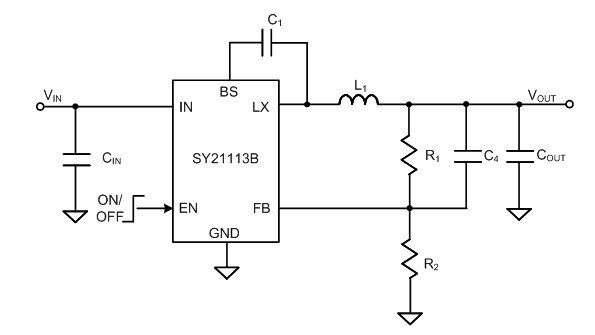

Typical Application

Description

The SY21113B is a high efficiency 500 kHz synchronous step down DC/DC converter capable of delivering 3A current. The SY21113B operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.



Low output voltage ripple and small external inductor and capacitor sizes are achieved with 500 kHz switching frequency. It adopts the instant PWM architecture to achieve fast transient responses for high step down applications

Applications

·       Set Top Box

·       Portable TV

·       Access Point Router

·       DSL Modem

·       LCD TV
