SY21153 -

Features

·       Low RDS(ON) for Internal Switches (Top/Bottom): 110/70mΩ

·       4.5-40V Input Voltage Range

·       Internal Compensation

·       Internal 1ms Soft-Start Limits the Inrush Current

·       Adjustable Switching Frequency Range: 500kHz To 2.5MHz

·      3AOutput Current Capability

·       1.5% 0.6V Reference

·       Low Quiescent Current

·       Cycle-By-Cycle Peak Current Limitation

·       Short Circuit Protection

·       Thermal Shutdown and Auto Recovery

·       Rohs Compliant and Halogen Free

·       Compact Package: TSOT23-8

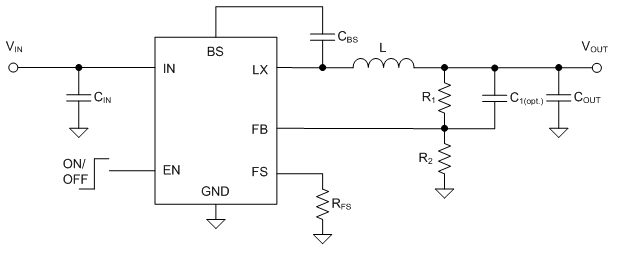

Typical Application

Description

The SY21153 develops a high efficiency synchronous step down DC/DC converter capable of delivering3Aload current. The SY21153 operates over a wide input voltage range from 4.5V to 40V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.


The SY21153 adopts peak current control scheme. The switching frequency is adjustable from 500kHz to 2.5MHz using an external resistor. The device also features ultra low quiescent operating to achieve high efficiency under light load. And the internal soft-start limits inrush current during power on.


SY21153 is available in TSOT23-8 package.

Applications

·       LCD-TV

·       SetTop Box

·       Notebook

·       Storage

·       High Power AP Router

·       Networking
