SY21212A -

Features

·       Wide Input Range: 3-8V Bias Input, 16Vout Max

·       1MHz Switching Frequency

·       Minimum On Time: 100ns Typical

·       Minimum Off Time: 100ns Typical

·       Low RDS(ON): 130mΩ

·       Rohs Compliant And Halogen Free

·       Accurate Reference: 0.6VREF

·       Compact Package: SOT23-6

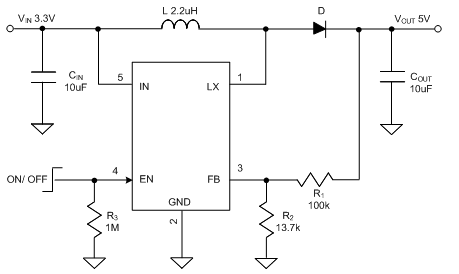

Typical Application

Description

The SY21212A is a high efficiency, current-mode control Boost regulator. The device integrates a 130mΩ low RDS(ON) N-channel MOSFET for high efficiency. The fixed 1MHz switching frequency and internal compensation reduce external components size and count. The build-in internal soft start circuitry minimizes the inrush current at start-up.



The SY21212A is available in compact SOT23-6 package.

Applications

·       Wled Drivers

·       Networking Cards Powered From Pci Or Pci-Express Slots
