SY21275 -

Features

·       Wide Input Voltage Range: 8.6V ~ 15.9V

·       95% Typical Efficiency

·       Feedback Reference Voltage : 1.25V +/-1.5%

·       500kHz Fixed Switching Frequency

·       Pulse Skipping Mode at Light Load

·       Adjustable Soft-start Time

·       EN ON/OFF Control

·       Over Voltage Protection

·       Cycle-by-cycle Current Limiting Protection

·       Input UVLO

·       Thermal Shutdown with Auto Recovery

·       RoHS Compliant and Halogen Free

·       Compact Package: DFN3x3-10

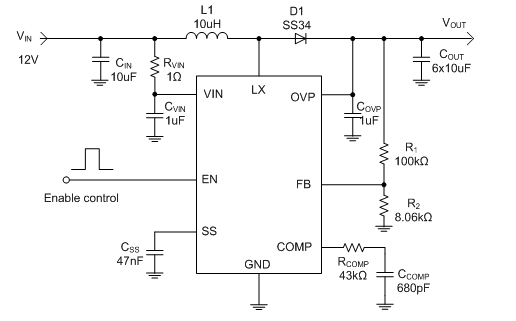

Typical Application

Description

SY21275 is a high efficiency, current-mode control Boost regulator. The device integrates a low RDS(ON) N-channel MOSFET for high efficiency. The fixed 500kHz switching frequency achieves high efficiency and fast transient response. The external programmable soft start time minimizes the inrush current at start-up.



SY21275 is available in compact DFN3×3-10 package.

Applications

·      TFT LCD Panels AVDD
