SYT03S05SHC - Ultra-Low Capacitance TVS Protection

Features


  • Transient protection for high-speed data lines


IEC 61000-4-2(ESD) ±20kV (Air)

±20kV (Contact)

IEC 61000-4-5 (Surge) 4A (8/20μs)


  • For 5V and below operating voltage
  • Small package: DFN1.2*1.0-6L
  • Protects two data lines
  • Low Cap: 0.3pF Typ. (I/O-I/O)


0.6pF Typ. (I/O-GND)


  • Low leakage current: 0.1μA @ VRWM (Typ.)
  • Low clamping voltage
  • Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge

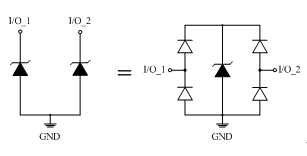

Typical Application

Description

SYT03S05SHC is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.3pF(I/O-I/O) only, SYT03S05SHC is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2(ESD), (±20kV air, ±20kV contact discharge), IEC 61000-4-5 (Surge) (4A, 8/20μs), etc.


SYT03S05SHC uses small DFN1.2*1.0-6L package. Each SYT03S05SHC device can protect two high-speed data lines. The combined features of low capacitance, small size and high ESD robustness make SYT03S05SHC ideal for high-speed data ports and high-frequency lines (e.g., USB2.0 & DVI) applications. The low clamping voltage of the SYT03S05SHC guarantees a minimum stress on the protected IC.

Applications


  • Serial ATA
  • PCI Express
  • Desktops, Servers and Notebooks
  • MDDI Ports
  • USB2.0 Power and Data Line Protection
  • Display Ports
  • Digital Visual Interfaces (DVI)
