SYT07S05SBC - Ultra-Low Capacitance TVS Protection

Features

  • Transient protection for super-speed data lines

IEC 61000-4-2(ESD)       ±20kV (Air)

    ±20kV (Contact)

  • ESD protection for super-speed differential signal (above 5Gb/s) channels
  • Fast turn-on and low clamping voltage
  • Protects six data lines and one VCC line
  • Ultra-low capacitance: 0.20pF Typical (I/O-I/O)
  • Low leakage current: 0.1μA @ VRWM (Typical)
  • Back-drive protection for power-down mode
  • Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge

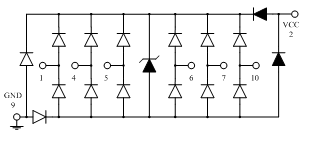

Typical Application

Description

SYT07S05SBC is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for super-speed data interfaces. With typical capacitance of 0.20pF only, SYT07S05SBC is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±20kV air, ±20kV contact discharge), etc



SYT07S05SBC uses a DFN4120-10L package. Each SYT07S05SBC device can protect six super-speed data lines and one VCC line. The combined features of ultra-low capacitance, small size and high ESD robustness make SYT07S05SBC ideal for super-speed data ports and high-frequency lines (e.g., HDMI & DVI) applications. The low clamping voltage of the SYT07S05SBC guarantees a minimum stress on the protected IC.

Applications

  • USB3.0 Power and Data Line Protection
  • Desktops, Servers and Notebooks
  • MDDI Ports
  • Display Ports
  • High Definition Multi-Media Interface (HDMI)
  • Digital Visual Interfaces (DVI)
