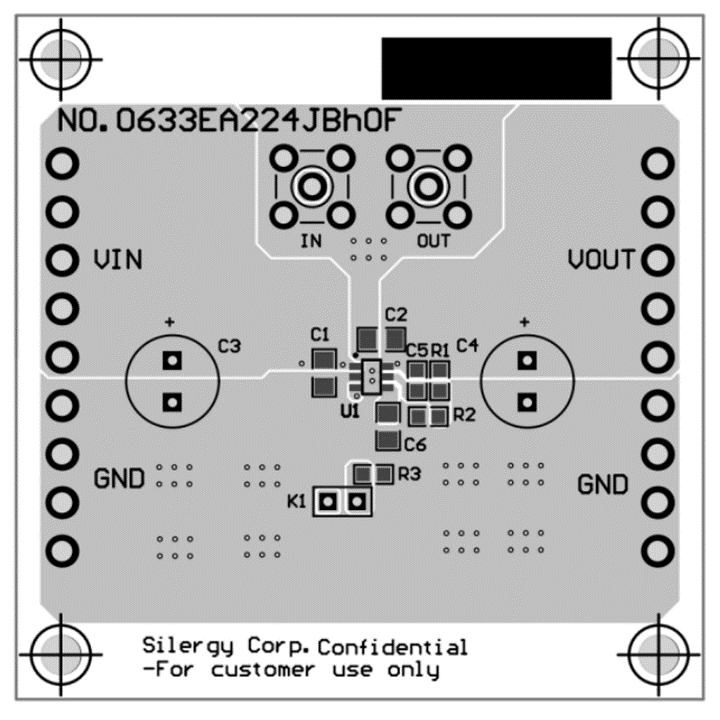

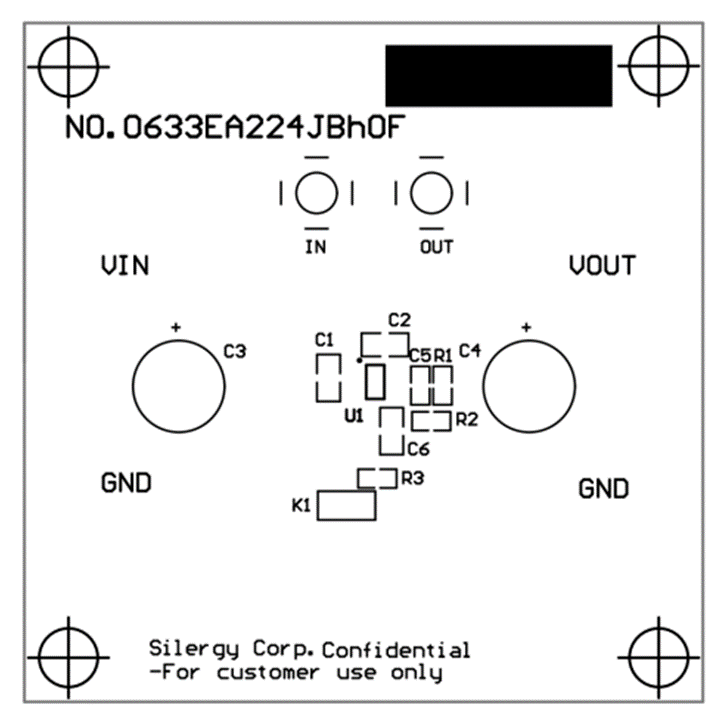

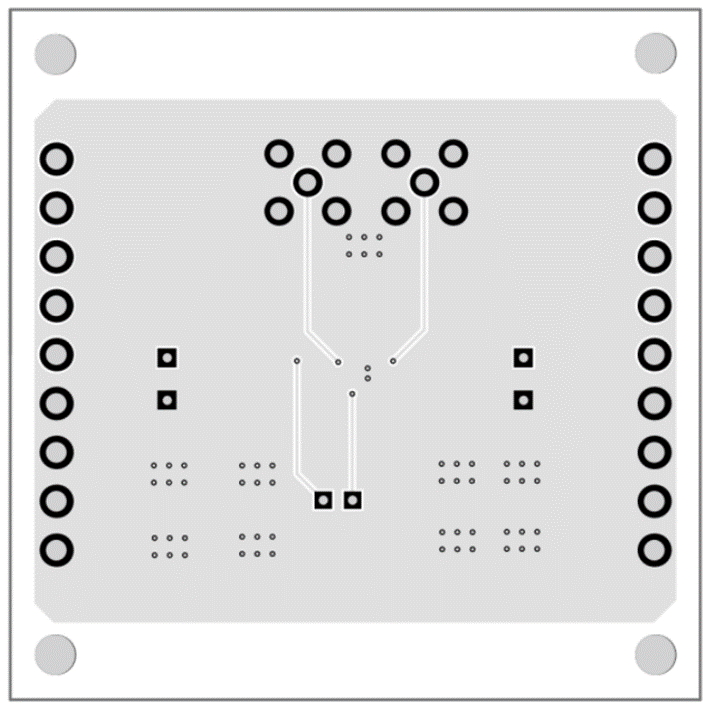

SA21307B00ABT

Production
Low IQ, Low Dropout, Automotive 300mA LDO
Datasheet
SA21307B00ABT  Low IQ, Low Dropout, Automotive 300mA LDO Datasheet
Part number SA21307B00ABT
Vin (max) (V) 6
Vin (min) (V) 2
Iout (max) (A) 0.3
Output type Adjustable
Vout (max) (V) 5.5
Vout (min) (V) 0.55
Iq (typ) (uA) 25
PSRR at 100kHz (dB) 35
Accuracy (±%) 1.5
Features Precise output,Enable,Auto-discharge,Low Iq,Over current protection,Output short to ground protection,Foldback current limit, Thermal shutdown
Operating temperature range(°C) -40 to 125
Package SOT23-6
Functional safety category
  • Input Voltage Range: 2V to 6V
  • Adjustable Output Voltage: 0.55V to 5.5V
  • Low Dropout Voltage: 65mV (Typ.) at 300mA(3.3V VOUT)
  • Power Supply Rejection Ratio (PSRR): 60dB @ 1kHz
  • Output Accuracy:

                o ±0.85% at 25°C

                o ±1.5% from -40°C to 125°C

  • Stable with a Minimum of 2.2μF or Larger Ceramic Output Capacitor
  • Low Current Consumption: Typical 25μA Quiescent and 0.1μA in Shutdown
  • Over Current Limit and Short CircuitProtection
  • Over Temperature Protection with Auto Recovery
  • Moisture Sensitivity Level (MSL): 1
  • Compact SOT23-6 Package
  • Automotive AEC-Q100 Grade 1 Qualified

The SA21307B is a 300mA current linear regulator featuring ultra-low ground current and low dropout voltage.

The device offers both adjustable and fixed output voltage versions with ±1.5% reference accuracy over temperature, also includes comprehensive protection features including over current limiting, short circuit protection, and overtemperature operation.

The SA21307B is available in a compact SOT23- 6 package.
