| Part number | SA59202DAA |
|---|---|
| Resolution (bit) | 12 |
| Common mode voltage (max)(V) | 25 |
| Common mode voltage (min)(V) | 3.6 |
| Vcc max (V) | 25 |
| Vcc min (V) | 3.6 |
| Vshunt Input offset (±)(max)(μV) | 312.5 |
| Vbus Input offset (±)(max)(mV) | |
| Vshunt Input offset drift (±)(typ)(μV/℃) | |
| Vbus Input offset drift (±)(typ)(μV/℃) | |
| Shunt voltage range(mV) | ±50 |
| Bus voltage range(V) | |
| Vshunt Gain error (max)(%) | 1 |
| Vbus Gain error (max)(%) | |
| Vshunt Gain error drift (±)(max)(ppm/℃) | |
| Vbus Gain error drift (±)(max)(ppm/℃) | |
| CMRR (min)(dB) | |
| Channel(#) | 1 |
| Power measurement accuracy(%) | |
| Iq (max) (μA) | 600 |
| Operating temperature range(°C) | -40 to 125 |
| Package | DFN |
| Pin count | 8 |
l High Accuracy Coulomb Counter Measures Accumulated Battery Charge and Discharge
l Operation Voltage Range: 3.6V to 25V
l 12-bit ADC Measures Voltage and Current
l 1% Voltage, Current and Charge Accuracy
l ±64mV Sense Voltage Range for Current ADC
l High Side Sense for Current ADC
l Low Value External Current Sense Resistor
l Low Quiescent Current
l Configurable Alert Output/Charge Complete Input
l I2C Interface
l Compact DFN3×3-8 Package
l AEC-Q100 Qualified for Automotive Applications
l Temperature Grade 2: –40°C to +105°C

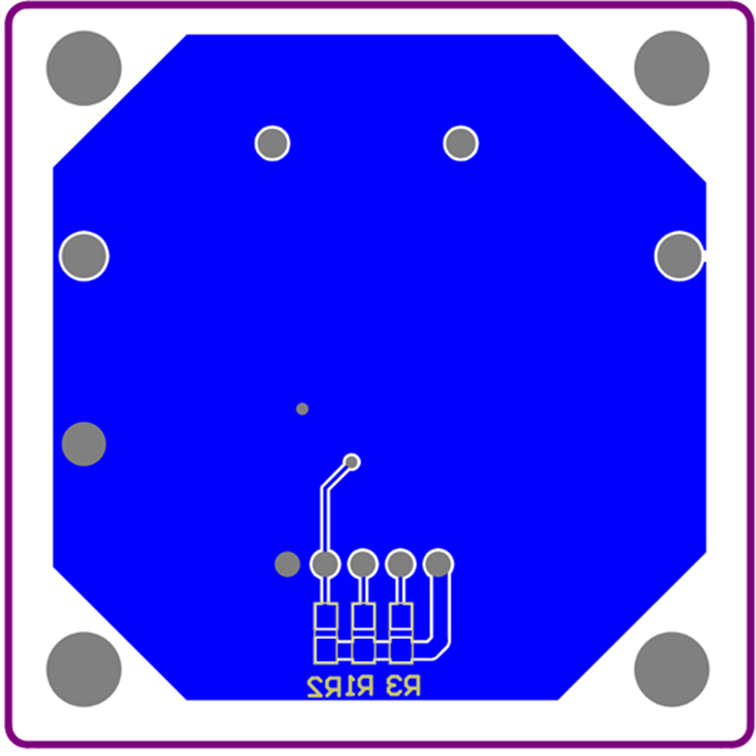

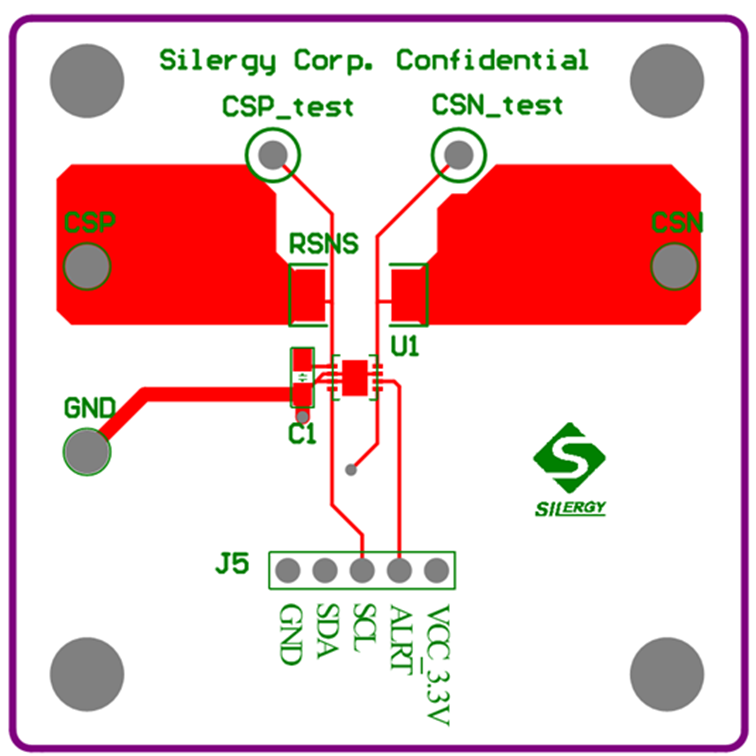

The SA59202 is a gas gauge IC for multi-cell batteries in handheld and portable equipment. It senses battery terminal voltage, charging/discharging current by an internal 12-bit ADC. The wide input voltage range allows user with multi-cell batteries up to 25V. An accurate coulomb counter integrates current through a sense resistor between the battery’s positive terminal and the load/charger. The test results are stored in internal registers which is accessible via the I2C Interface.
The SA59202 has programmable high and low thresholds for all measured quantities. If a programmed threshold is exceeded, the device will communicate an alert using either the alert response procedure or by setting a flag in the internal status register.
