SQ24345DAAT

Production
36V, 150mA LDO Regulator
Datasheet
SQ24345DAAT 36V, 150mA LDO Regulator Datasheet
Part number SQ24345DAAT
Vin (max) (V) 36
Vin (min) (V) 4
Iout (max) (A) 0.15
Output type Fixed
Vout (max) (V) 5
Vout (min) (V) 5
Iq (typ) (uA) 15
PSRR at 100kHz (dB) 35
Accuracy (±%)
Features Over Current Protection， Thermal Shutdown
Operating temperature range(°C) -40 to 125
Package SOT23-5
Functional safety category
  • Wide Input Voltage Range: 4V to 36V
  • Low Dropout Voltage (150mV @ 150mA)
  • Ultra-low Quiescent Current
  • Stability with Tantalum or Ceramic Capacitors
  • Excellent Load and Line Regulation
  • 150mA Maximum Load Current
  • Over Current Protection
  • Thermal Shutdown
  • Compact SOT23-5 Package

Evaluation Board

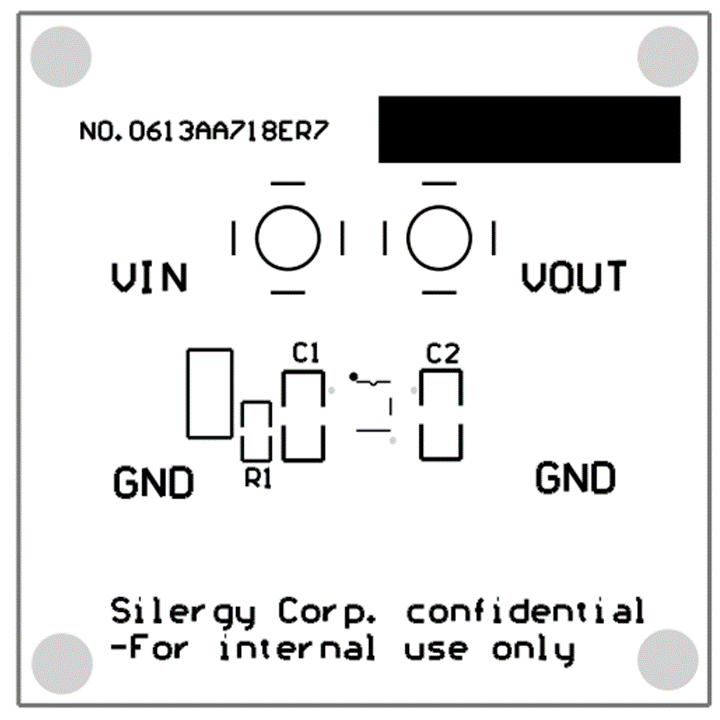

  • 24345D-1

    Photo of evaluation board

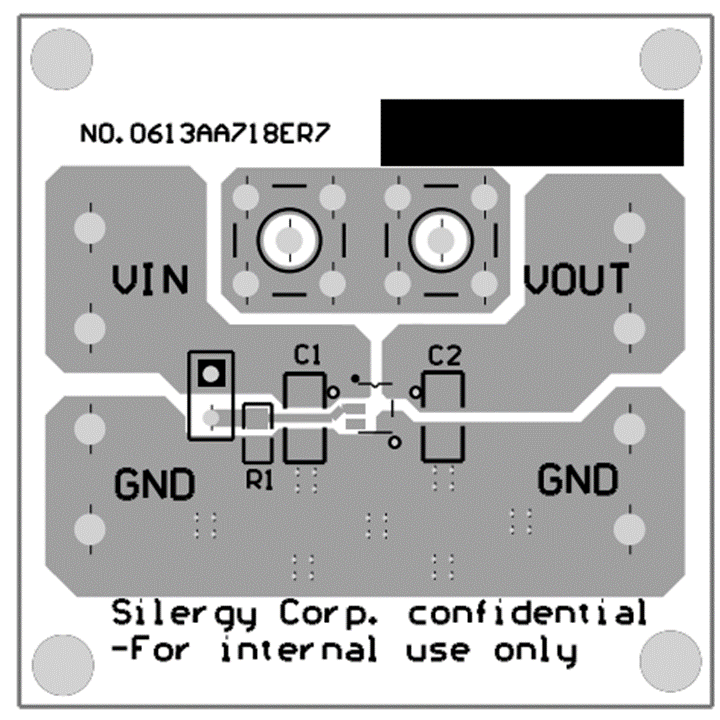

  • 24345D-2

    Photo of evaluation board

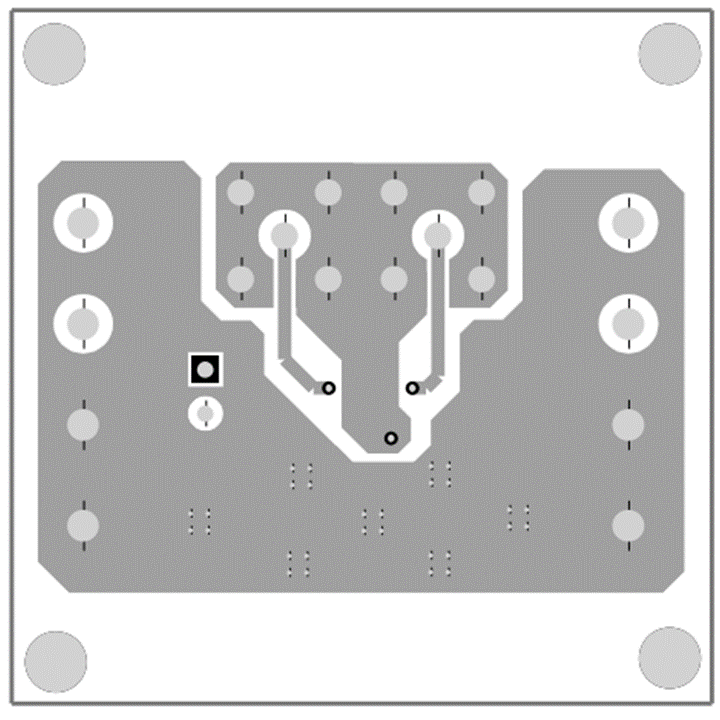

  • 24345-3

    Photo of evaluation board

EVB_SQ24345DAAT

The EVB_SQ24345DAAT is intended for evaluating 4V to 36V input, 150mA LDO SQ24345DAAT.

Technical Documentation

Title Date
Silergy_Catalog_Q2_2026 2026-06-12
