SY20095DEC

Production
High Efficiency 1.5MHz, 1A Synchronous Step Down Regulator
Datasheet
SY20095DEC High Efficiency 1.5MHz, 1A Synchronous Step Down Regulator Datasheet
    Part NumberSY20095DEC
    Vin_min (V)2.5
    Vin_max (V)6.5
    Io_max (A)1
    Channels
    Vo_min (V)0.6
    Fsw (MHz)1.5
    Vref (V)
    Vref Accuracy±2%
    Iq (uA)40
    Rdson1260
    Rdson2170
    Soft Start1
    PackageDFN2x2-6
    Topology
    Protection Mode
    Features / Special Function100% Dropout Operation
    Temp Range
    •       Low RDS(ON) for Internal Switches (Top/Bottom): 260mΩ/170 mΩ
    •       2.5-6.5V Input Voltage Range
    •       40μA Typical Quiescent Current
    •       High Light Load Efficiency
    •       1.5MHz Switching Frequency
    •       Internal Soft-start Limits the Inrush Current
    •       100% Dropout Operation
    •       RoHS Compliant and Halogen Free
    •       Compact Package: DFN2x2-6

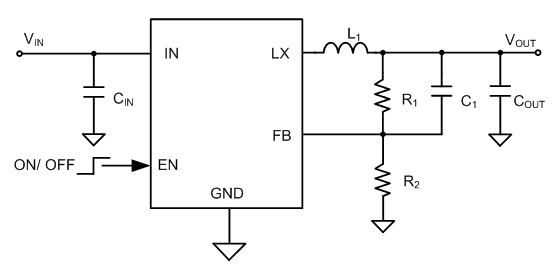

     The SY20095 is a high-efficiency 1.5MHz synchronous step-down DC-DC converter capable of delivering up to 1A output current. It operates over a wide input voltage range from 2.5V to 6.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Evaluation Board

    • 20095-1

      Photo of evaluation board

    • 20095-2

      Photo of evaluation board

    • 20095-3

      Photo of evaluation board

    EVB_SY20095DEC

    The EVB_SY20095DEC is intended for evaluating 1.5MHz, 1A, 2.5~6.5V input,1.8V output synchronous Buck regulator. It features Enable control, output voltage selection inputs.
