SY20113ADFC

Production
High Efficiency 5.5V, 3MHz, 3A Buck
Datasheet
SY20113ADFC High Efficiency 5.5V, 3MHz, 3A Buck Datasheet
    Part NumberSY20113ADFC
    Vin_min (V)2.7
    Vin_max (V)5.5
    Io_max (A)3
    Channels
    Vo_min (V)0.6
    Fsw (MHz)1
    Vref (V)
    Vref Accuracy±2%
    Iq (uA)55
    Rdson1110
    Rdson280
    Soft Start1.2
    PackageDFN2x2-8
    Topology
    Protection ModeOVP,Hic-cup SCP
    Features / Special FunctionPower Good Indicator,Auto-Discharge,100% Dropout Operation
    Temp Range
    •      Low RDS(ON) for Internal Switches(Top/Bottom):110mΩ/80mΩ
    •      3A Continuous Load Current Capability
    •      2.7-5.5V Input Voltage Range
    •      High Switching Frequency Minimizes the External Components: 1MHz
    •      Internal Soft-start Limits the Inrush Current
    •      Reliable Short Circuit Protection: Hic-cup Mode Protection
    •      Reliable Over-voltage Protection: No Latch off Protection
    •      100% Dropout Operation
    •      RoHS Compliant and Halogen Free
    •      Compact Package: DFN2x2-8

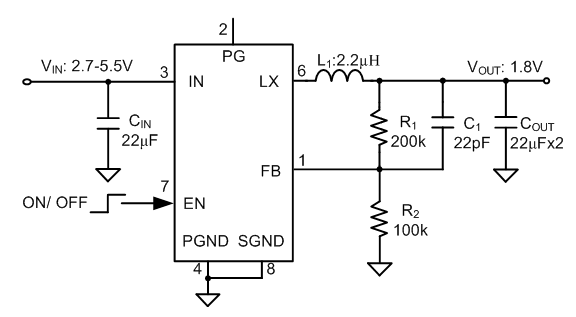

    The SY20113A is a high-efficiency, high frequency synchronous step-down DC/DC regulator capable of delivering up to 3A output current. The SY20113A operates over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency.

     SY20113A integrates reliable short circuit and over-voltage protection.

    Evaluation Board

    • 20113A-1

      Photo of evaluation board

    • 20113A-2

      Photo of evaluation board

    • 20113A-3

      Photo of evaluation board

    EVB_SY20113ADFC

    The EVB_SY20113ADFC is intended for evaluating 1 MHz, 3A, 2.7~5.5V input, 1.8V output synchronous Buck regulator. It features enable control, output voltage selection inputs.
