SY20113CDFC

Production
High Efficiency 5.5V, 3A Continuous, 3MHz Synchronous Step Down Regulator
Datasheet
SY20113CDFC High Efficiency 5.5V, 3A Continuous, 3MHz Synchronous Step Down Regulator Datasheet
    Part NumberSY20113CDFC
    Vin_min (V)2.7
    Vin_max (V)5.5
    Io_max (A)3
    Channels1
    Vo_min (V)0.6
    Fsw (MHz)3
    Vref (V)0.6
    Vref Accuracy±2%
    Iq (uA)55
    Rdson1100
    Rdson280
    Soft StartInternal
    PackageDFN2x2-8
    TopologyBuck
    Protection ModeHiccup SCP
    Features / Special FunctionHigh Switching Frequency,100% Dropout,Power Good Indicator,Auto-Discharge
    Temp Range-40℃ to 125℃
    • Low RDS(ON) for Internal Switches
    •  (Top/Bottom):110mΩ/80mΩ
    • 3A Continuous Load Current Capability
    • 2.7-5.5V Input Voltage Range
    • High Switching Frequency Minimizes the External Components: 3MHz
    • Internal Soft-start Limits the Inrush Current
    • Hic-cup Mode Protection
    • 100% Dropout Operation
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN2×2-8

    The SY20113C is high-efficiency, high frequency synchronous step-down DC/DC regulator IC capable of delivering up to 3A output current. The SY20113C operates over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.



    Low output voltage ripple and small external inductor and capacitor sizes are achieved with greater than 3MHz switching frequency.



    SY20113C integrates reliable short circuit and over-voltage protection.

    Evaluation Board

    • 20113C-1

      Photo of evaluation board

    • 20113C-2

      Photo of evaluation board

    • 20113C-3

      Photo of evaluation board

    EVB_SY20113CDFC

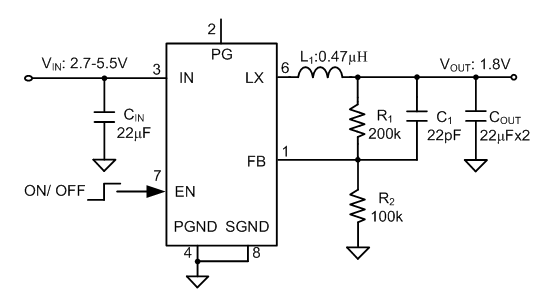

    The EVB_SY20113CDFC is intended for evaluating 3MHz, 3A, 2.7~5.5V input, 1.8V output synchronous Buck regulator. It features enable control, output voltage selection inputs.
