High Efficiency 5.5V, 3A continuous, 1MHz
Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part Number | SY20113EDFC |
|---|
| Vin_min (V) | 2.7 |
|---|
| Vin_max (V) | 5.5 |
|---|
| Io_max (A) | 3 |
|---|
| Channels | |
|---|
| Vo_min (V) | 0.6 |
|---|
| Fsw (MHz) | 1 |
|---|
| Vref (V) | |
|---|
| Vref Accuracy | ±2% |
|---|
| Iq (uA) | 55 |
|---|
| Rdson1 | 110 |
|---|
| Rdson2 | 80 |
|---|
| Soft Start | 1.2 |
|---|
| Package | DFN2x2-8 |
|---|
| Topology | |
|---|
| Protection Mode | OVP,Hic-cup SCP |
|---|
| Features / Special Function | Power Good Indicator,Auto-Discharge,100% Dropout Operation |
|---|
| Temp Range | |
|---|
- Low RDS(ON) for Internal Switches (Top/Bottom):110mΩ/80mΩ
- 3A Continuous Load Current Capability
- 2.7-5.5V Input Voltage Range
- 1MHz High Switching Frequency Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- Hic-cup Mode Protection
- Reliable Over-voltage Protection: No latch off Protection
- 100% Dropout Operation
- Forced PWM Mode Operation Only
- RoHS Compliant and Halogen Free
- Compact Package: DFN2x2-8

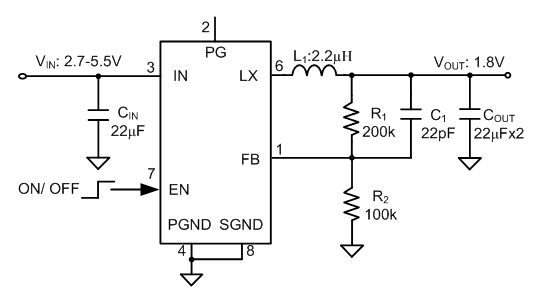

The SY20113E is high-efficiency, high frequency synchronous step-down DC/DC regulator capable of delivering up to 3A output current. The SY20113E operates over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency.
SY20113E integrates reliable short circuit and over-voltage protection.
