High Efficiency, 1.5MHz, 2A Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part Number | SY20122E1ABC |
|---|
| Vin_min (V) | 2.5 |
|---|
| Vin_max (V) | 5.5 |
|---|
| Io_max (A) | 2 |
|---|
| Channels | |
|---|
| Vo_min (V) | 0.6 |
|---|
| Fsw (MHz) | 1.5 |
|---|
| Vref (V) | |
|---|
| Vref Accuracy | ±1.5% |
|---|
| Iq (uA) | |
|---|
| Rdson1 | 130 |
|---|
| Rdson2 | 85 |
|---|
| Soft Start | 1 |
|---|
| Package | SOT23-6 |
|---|
| Topology | |
|---|
| Protection Mode | OVP,Hic-cup SCP |
|---|
| Features / Special Function | Power Good Indicator,Auto-Discharge,100% Dropout Operation |
|---|
| Temp Range | |
|---|
- 2.5V to 5.5V Input Voltage Range
- Low RDS(ON) for Internal Switches (Top/Bottom) 130mΩ /85mΩ
- High Switching Frequency 1.5MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- Forced PWM Operation
- 100% Dropout Operation
- Hiccup for Short Circuit Protection
- Power Good Indicator
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: SOT23-6

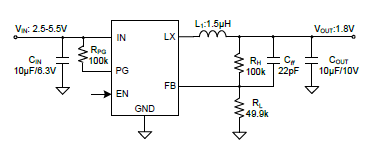

The SY20122E1 is a high efficiency 1.5MHz synchronous step down DC/DC regulator, which is capable of delivering up to 2A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1.5MHz switching frequency.
Evaluation Board

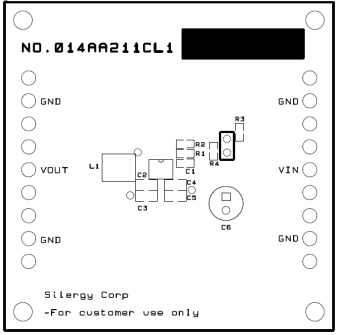

Photo of evaluation board

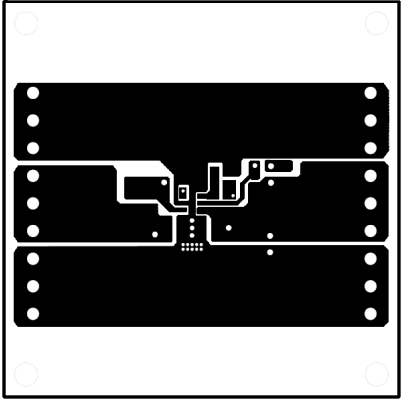

Photo of evaluation board

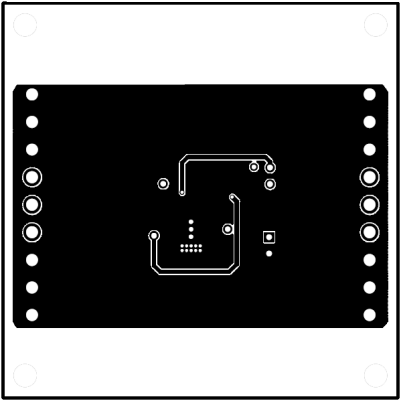

Photo of evaluation board
The EVB_SY20122E1ABC is intended for evaluating 1.5MHz, 2A, 2.5~5.5V input, 1.8V output synchronous Buck regulator. It features enable control.
