High Efficiency, 1.5MHz, 2A Buck
![]()
- Parameters
- Features
- Description
| Part Number | SY20162IABC |
|---|
| Vin_min (V) | 2.7 |
|---|
| Vin_max (V) | 5.5 |
|---|
| Io_max (A) | 2 |
|---|
| Channels | |
|---|
| Vo_min (V) | 0.6 |
|---|
| Fsw (MHz) | 1.5 |
|---|
| Vref (V) | |
|---|
| Vref Accuracy | ±1.5% |
|---|
| Iq (uA) | 50 |
|---|
| Rdson1 | 130 |
|---|
| Rdson2 | 85 |
|---|
| Soft Start | 0.7 |
|---|
| Package | SOT23-6 |
|---|
| Topology | |
|---|
| Protection Mode | Hic-cup SCP |
|---|
| Features / Special Function | Power Good Indicator,100% Dropout Operation |
|---|
| Temp Range | |
|---|
- 2.7V to 5.5V Input Voltage Range
- 50μA Low Quiescent Current
- Low RDS(ON) for Internal Switches (Top/Bottom) 130mΩ /85mΩ
- High Switching Frequency 1.5MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Reliable Short Circuit Protection
- Power Good Indicator
- RoHS Compliant and Halogen Free
- Compact Package: SOT23-6
The SY20162I is a high efficiency, 1.5MHz synchronous step down DC/DC regulator capable of delivering up to 2A output current. It can operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The low output voltage ripple, the small external inductor and the capacitor sizes are achieved at 1.5MHz switching frequency.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

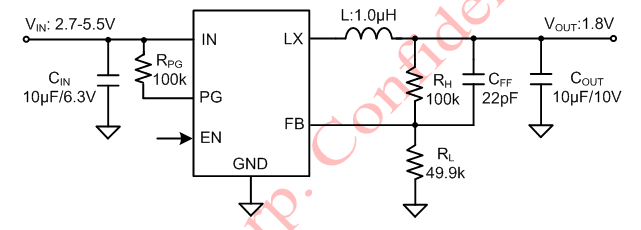

The EVB_SY20162IABC is intended for evaluating 1.5MHz, 2A, 2.7~5.5V input, 1.8V output synchronous Buck regulator. It features enable control.
