High Efficiency 1.5MHz, Dual 1A Synchronous Step Down Regulator
- Parameters
- Features
- Description
| Part Number | SY20311AIC |
|---|
| Vin_min (V) | 2.5 |
|---|
| Vin_max (V) | 5.5 |
|---|
| Io_max (A) | 1 |
|---|
| Channels | 2 |
|---|
| Vo_min (V) | 0.6 |
|---|
| Fsw (MHz) | 1.5 |
|---|
| Vref (V) | |
|---|
| Vref Accuracy | ±2% |
|---|
| Iq (uA) | 45 |
|---|
| Rdson1 | 260 |
|---|
| Rdson2 | 180 |
|---|
| Soft Start | 1 |
|---|
| Package | TSOT23-8 |
|---|
| Topology | |
|---|
| Protection Mode | Hic-cup SCP |
|---|
| Features / Special Function | 180 degree out of phase operation,100% Dropout Operation |
|---|
| Temp Range | |
|---|
- 2.5V to 5.5V Input Voltage
- 1.5MHz Switching Frequency
- 180° Out of Phase Operation
- Output Current: 1A per Channel
- Quiescent Current: Typical 55µA for both Channels
- Low RDS(ON) for Internal Switches (PFET/NFET): 260mΩ/180mΩ
- Internal Soft-start
- 100% Dropout Operation
- RoHS Compliant and Halogen Free
- Compact Package: TSOT23-8

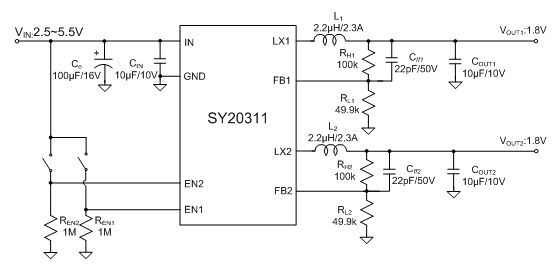

The SY20311 is a dual output, high efficiency 1.5MHz synchronous step down DC/DC regulator capable of delivering up to 1A output current for each output channel. The SY20311 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Evaluation Board

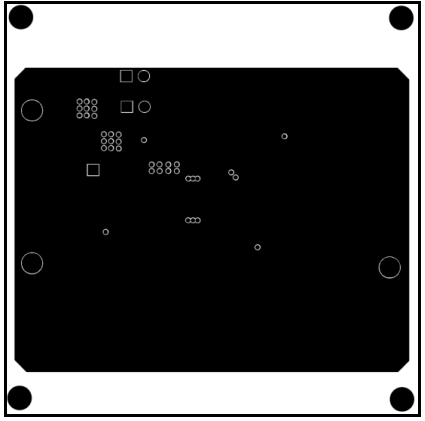

Photo of evaluation board

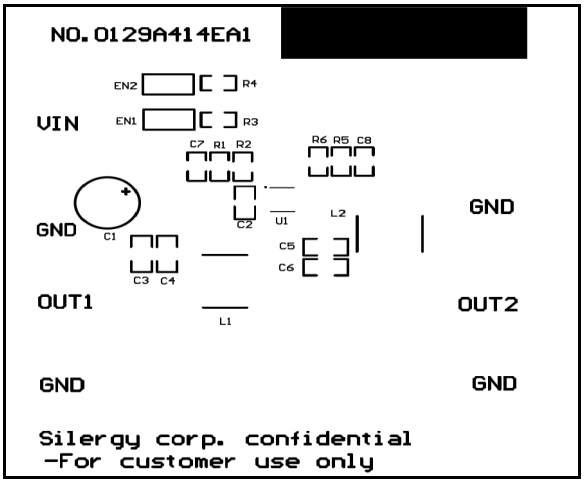

Photo of evaluation board

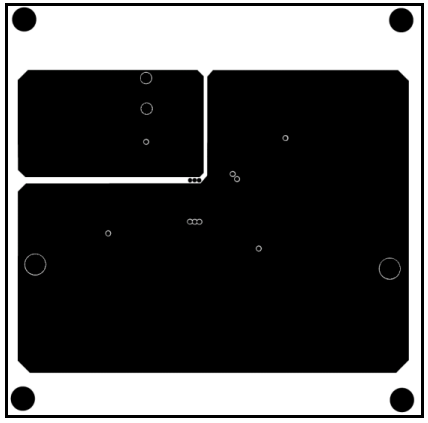

Photo of evaluation board

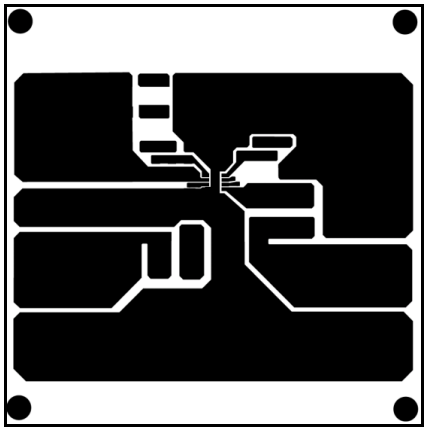

Photo of evaluation board

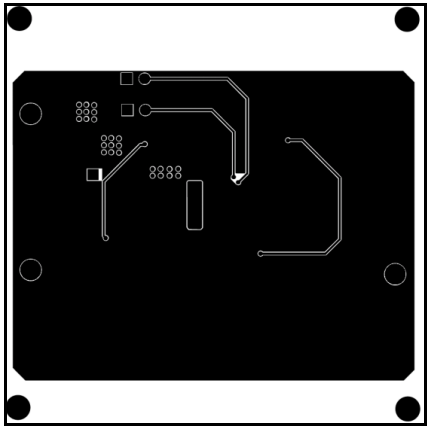

Photo of evaluation board
The EVB_SY20311AIC is intended for evaluating 1.5MHz, Dual 1.0A, synchronous Buck regulator. It features Enable controls.
