SY20417AAC

Production

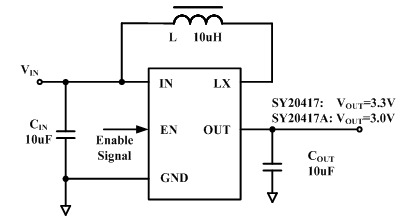

0.7V Minimum Input, Fixed Output 100mA Maximum Output Current Synchronous Boost
Datasheet
SY20417AAC 0.7V Minimum Input, Fixed Output 100mA Maximum Output Current Synchronous Boost Datasheet
    Part NumberSY20417AAC
    Vin_min (V)0.7
    Vin_max (V)5
    Limit Current (A)0.35
    Fsw (MHz)
    Vo_max (V)3.3
    Vref Accuracy±3%
    Rdson1500
    Rdson2700
    Features / Special FunctionFixed Vout, Bypass function @ shutdown
    PackageSOT23-5



    • 0.7V Minimum Input Voltage
    • 5.5μA Typical Quiescent Current
    • Input Under Voltage Lockout
    • Bypass Function During Shutdown
    • Low RDS(ON) (Main Switch/Synchronous Switch) at Output: 0.5/0.7Ω
    • Fixed Output Voltage: Fixed 3.3V
    • Typical 350mA Peak Current Limit
    • Compact SOT23-5 Package

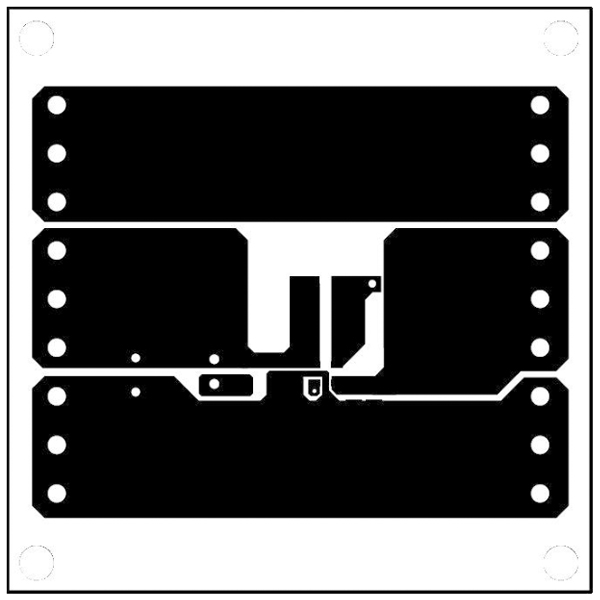

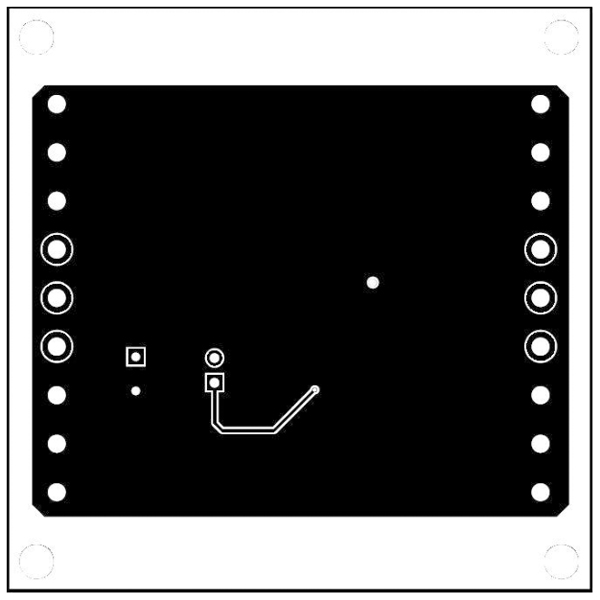

    Evaluation Board

    • SY20417AAC-a

      Photo of evaluation board

    • SY20417AAC-c

      Photo of evaluation board

    • SY20417AAC-b

      Photo of evaluation board

    EVB_SY20417AAC

    The EVB_SY20417AAC is intended for evaluating a high efficiency, synchronous, current hysteresis control, step-up boost converter SY20417. DB_SY20417 provides up to 100mA output current at 3.3V output.
