Sink and Source DDR Termination Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY20775DBD |
| Vin (max) (V) |
3.5 |
| Vin (min) (V) |
2.375 |
| Iout (max) (A) |
3 |
| Output type |
Adjustable |
| Vout (max) (V) |
1.8 |
| Vout (min) (V) |
0.5 |
| Iq (typ) (uA) |
700 |
| PSRR at 100kHz (dB) |
|
| Accuracy (±%) |
±12mV |
| Features |
Enable,Power good,Auto-discharge,Over current protection,Thermal shutdown |
| Operating temperature range(°C) |
-40 to 125 |
| Package |
DFN3×3-10 |
| Functional safety category |
|
- System Voltage Range (VIN): 2.35V to 3.5V
- Wide VLDOIN Voltage Range: 1.1V to 3.5V
- Current Source/Sink Capability: 3A/3.5A
- PGOOD Pin Monitors Output Regulation
- Output Voltage Remote Sensing (VOSNS)
- REFIN Input Allows Flexible Input Voltage Tracking
- Output Current Limit Setting
- Thermal Shutdown Protection
- ±10mA Buffered Reference (REFOUT)
- Supports DDR, DDR2, DDR3, DDR3L, DDR4 VTT Applications
- Package: DFN3×3-10 with Thermal Pad
The SY20775 is a sink and source double data rate memory (DDR) regulator designed for applications that require very low noise and low input voltage systems.
It supports power requirements for DDR, DDR2, DDR3, DDR3L, and DDR4 VTT BUS termination, and it uses remote sensing for increased output voltage accuracy and a fast transient response. Additionally, it has an enable pin to control VTT discharge during low power modes in DDR applications, and a PGOOD pin to monitor output regulation.
The SY20775 is available in a DFN 3mm×3mm-10pin package with exposed thermal pad and it operates over a temperature range of -40°C to 85°C.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board

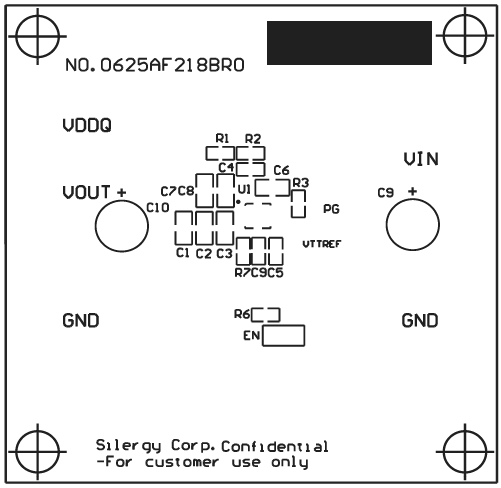

The EVB_SY20775DBD is intended for evaulating the Sink and Source DDR Termination Regulator SY20775DBD.
