SY20816AQLC

Production
2 to 1 Power MUX for USB PD Application
Datasheet
SY20816AQLC 2 to 1 Power MUX for USB PD Application Datasheet
    Part NumberSY20816AQLC
    Vin_min (V)4.5
    Vin_max (V)23
    Io_max (A)5
    Rdson135
    Channels2
    EnableActive High
    Protection ModeOCP,OVP
    Features / Special Function2 to 1 Power MUX, Fast Role Swap,Auto-Discharge,Fault Flag Output,Reverse Blocking
    PackageQFN3x4-16

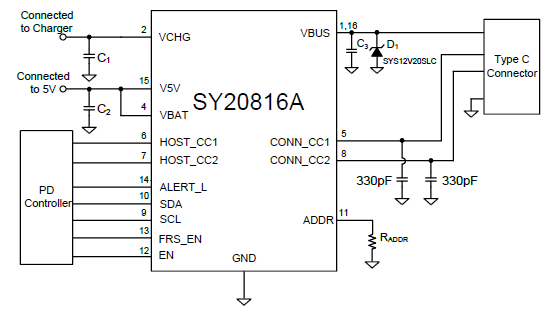

    • 2 to 1 Power MUX:

    ----High Voltage Channel: 4.5V to 23V for VCHG Input Range.

    ----5V Channel: 4V to 5.5V for V5V Input Range

    • Smooth Ramp Control When Channel Transition
    • Reverse Blocking Function
    • Bi-direction Control for High Voltage Channel
    • Fast Role Swap
    • I2C Interface
    • CC Bypass and Isolation Control
    • Dead Battery Wake up Function
    • VCONN Path for E-mark Cable
    • Protection:

    ----Output Current Limit Setting

    ----OCP/OVP/TSD/UVP

    • RoHS Compliant and Halogen Free
    • Compact Package QFN3×4-16



    Evaluation Board

    • 20816A-9

      Photo of evaluation board

    • 20816A-8

      Photo of evaluation board

    • 20816A-7

      Photo of evaluation board

    EVB_SY20816AQLC

    The EVB_SY20816AQLC is used to evaluate a 2 to 1 power mux switch for USB PD application.
