SY21199CABC

Production
High Efficiency 1MHz, 600mA Step Up Regulator
Datasheet
SY21199CABC High Efficiency 1MHz, 600mA Step Up Regulator Datasheet
    Part NumberSY21199CABC
    Vin_min (V)3
    Vin_max (V)25
    Limit Current (A)0.6
    Fsw (MHz)1
    Vo_max (V)25
    Vref Accuracy±2%
    Rdson1150
    Rdson2
    Features / Special FunctionInternal SS/Comp
    PackageSOT23-6
    • Wide Input Range: 3-25V Bias Input, 25VOUT, MAX
    • 1MHz Switching Frequency
    • Up to 600mA Output Current
    • Minimum ON Time: 100ns Typical
    • Minimum OFF Time: 100ns Typical
    • Low RDS(ON)  for Internal N-Channel MOSFET:150mΩ
    • RoHS Compliant and Halogen Free
    • Accurate Reference: 0.6VREF
    • Compact Package: SOT23-6



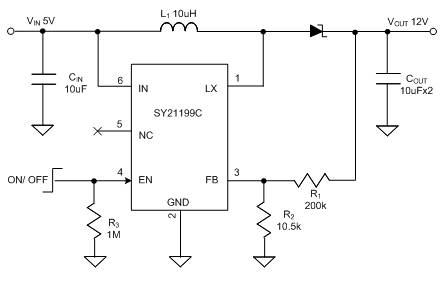

    The SY21199C high efficiency step-up regulator is targeted at general applications and can deliver 600mA current over a wide input voltage range from 3V to 25V. It integrates an N-channel MOSFET with low 150mΩ RDS(ON) to minimize conduction loss.

    The 1MHz switching frequency and internal compensation reduce external inductor and capacitor sizes.

    The SY21199C is available in a compact SOT23-6 package.

    Evaluation Board

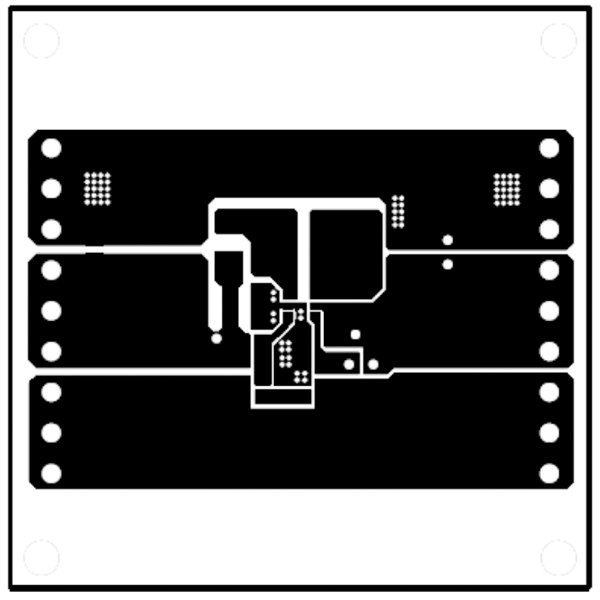

    • SY21199CABC_1-c

      Photo of evaluation board

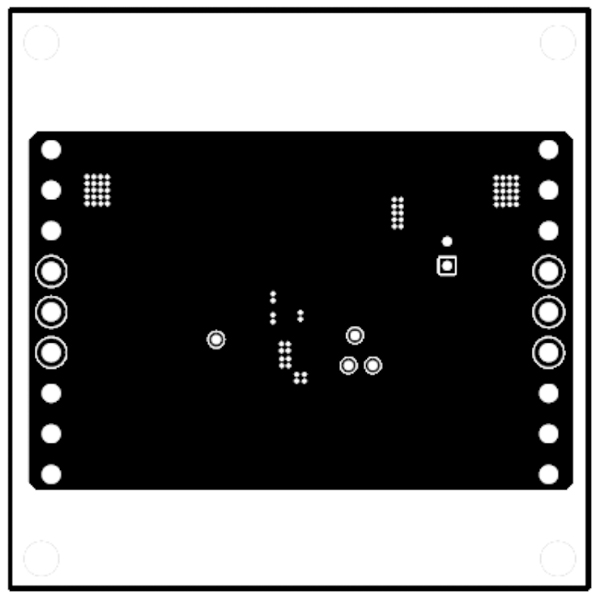

    • SY21199CABC_1-a

      Photo of evaluation board

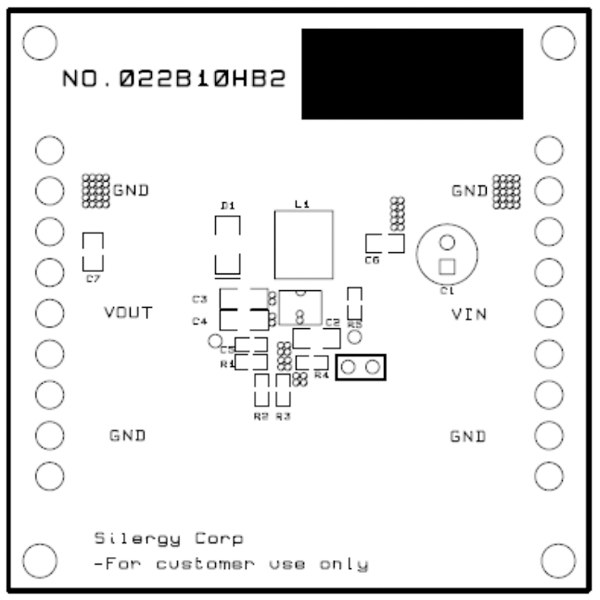

    • SY21199CABC_1-b

      Photo of evaluation board

    EVB_SY21199CABC_1

    The EVB_SY21199CABC_1 is intended for evaluating a high efficiency boost regulator SY21199C which is targeted for general step-up applications.
