High Efficiency 1MHz, 2A Step Up Regulator
- Parameters
- Features
- Description
| Part Number | SY21212AABC |
|---|
| Vin_min (V) | 3 |
|---|
| Vin_max (V) | 8 |
|---|
| Limit Current (A) | 2 |
|---|
| Fsw (MHz) | 1 |
|---|
| Vo_max (V) | 16 |
|---|
| Vref Accuracy | ±2% |
|---|
| Rdson1 | 130 |
|---|
| Rdson2 | |
|---|
| Features / Special Function | Internal SS/Comp |
|---|
| Package | SOT23-6 |
|---|
- 3V to 8V Input Voltage Range
- Up to 2A Output Current
- 15 µA Shutdown Current (Max.)
- 100 µA Iq (Typ.)
- Low RDS(ON) for Internal N-Channel MOSFET: 130mΩ
- 1MHz Switching Frequency
- Minimum On-Time: 100ns Typical
- Minimum Off-Time: 100ns Typical
- Internal Soft-Start Limits Inrush Current
- ±2% 0.6V Reference
- RoHS-Compliant and Halogen-Free
- Compact SOT23-6 Package

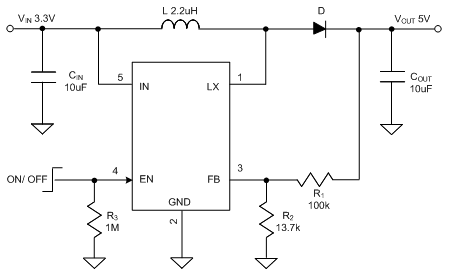

The SY21212A high efficiency step-up regulator operates using current mode control, over a wide input voltage range from 3V to 8V. It integrates an N-channel MOSFET with low 130mΩ RDS(ON) to minimize conduction loss.
The 1MHz switching frequency and internal compensation reduce external inductor and capacitor sizes, and the built-in internal soft-start circuitry minimizes inrush current at startup.
The SY21212A is available in a compact SOT23-6 package.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY21212AABC_1 is intended for evaluating a high efficiency boost regulator SY21212A which is targeted for general step-up applications.
