High Efficiency Fast Response, 6A Continuous, 12A Peak, 28V Input Synchronous Step Down Regulator
- Parameters
- Features
- Description
Part Number | SY21215QNC |
---|
Vin_min (V) | 4 |
---|
Vin_max (V) | 28 |
---|
Vo_min (V) | 0.6 |
---|
Io_max (A) | 6 |
---|
Vref Accuracy | ±1.5% |
---|
Fsw (MHz) | 0.8 |
---|
Iq (uA) | 100 |
---|
Package | QFN3x3-10 |
---|
Protection Mode | latch-off SCP/OVP |
---|
Features / Special Function | Power Good Indicator, Programmable peak current limit |
---|
- Low RDS(ON) for Internal Switches (Top/Bottom): 40/20 mΩ
- Wide Input Voltage Range: 4-28V
- Instant PWM Architecture to Achieve Fast Transient Responses
- Internal 400μs Soft-start Limits the Inrush Current
- Pseudo-constant Frequency: 800kHz
- 6A Continuous/12A Peak Output Current Capability
- ±1.5% 0.6V Reference
- Programmable Peak Current Limit
- Power Good Indicator
- Output Discharge Function
- Short Circuit Latch Off Protection
- Over Voltage Latch Off Protection
- Input UVLO
- Over Temperature Protection
- RoHS Compliant and Halogen Free
- Compact Package: QFN3x3-10
The SY21215 develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 6A continuous, 12A peak current. The SY21215 operates over a wide input voltage range from 4V to 28V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The SY21215 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 800kHz under continuous conduction mode to minimize the size of inductor and capacitor.
Evaluation Board

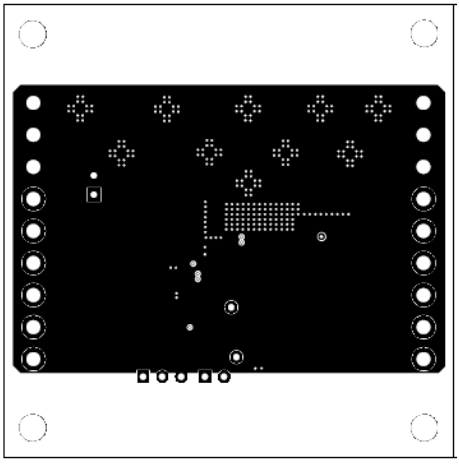

Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY21215QNC is intended for evaluating fast response, 6A continuous, 12A peak current, 28V Input synchronous buck regulator. It features Enable control, output voltage selection inputs.
