High Efficiency 6V, 4A, 1MHz Step Up Regulator
![]()
- Parameters
- Features
- Description
| Part Number | SY21264ADBC |
|---|
| Vin_min (V) | 2 |
|---|
| Vin_max (V) | 6 |
|---|
| Limit Current (A) | 4 |
|---|
| Fsw (MHz) | 1 |
|---|
| Vo_max (V) | 6 |
|---|
| Vref Accuracy | ±2% |
|---|
| Rdson1 | 90 |
|---|
| Rdson2 | |
|---|
| Features / Special Function | Internal SS/Comp |
|---|
| Package | DFN3x3-10 |
|---|
- 2V to 6V Input Voltage Range
- Up to 6V Output Voltage
- Low RDS(ON) for Internal N-Channel MOSFET: 90mΩ Typical
- 1MHz Switching Frequency
- Minimum On-Time: 100ns Typical
- Minimum Off-Time: 100ns Typical
- Internal 4A Switch
- Internal Soft-Start Limits Inrush Current
- ±2% 0.6V Reference
- Overtemperature Protection
- Overcurrent Protection
- RoHS-Compliant and Halogen-Free
- Compact DFN3mmx3mm-10 Package

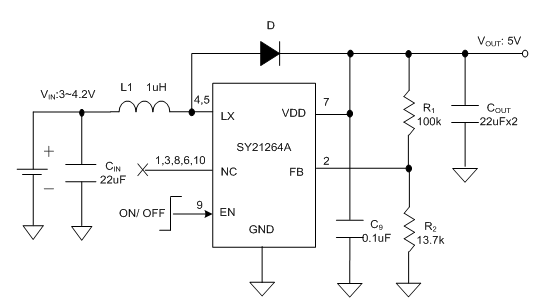

The SY21264A high efficiency step-up regulator operates using current mode control, and can deliver 4A current over a wide input voltage range from 2V to 6V. It integrates an N-channel MOSFET with low 90mΩ RDS(ON) to minimize conduction loss.
The 1MHz switching frequency and internal compensation reduce external inductor and capacitor sizes, and the built-in internal soft-start circuitry minimizes inrush current at startup.
The SY21264A is available in a compact DFN3mmx3mm-10 package.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY21264ADBC_1 is intended for evaluating a high efficiency boost regulator SY21264A which is targeted for general step-up applications.
