High Efficiency 33V, 4A, 1MHz Step Up Regulator
![]()
- Parameters
- Features
- Description
| Part Number | SY21314DBC |
|---|
| Vin_min (V) | 3 |
|---|
| Vin_max (V) | 33 |
|---|
| Limit Current (A) | 4 |
|---|
| Fsw (MHz) | 1 |
|---|
| Vo_max (V) | 33 |
|---|
| Vref Accuracy | ±2% |
|---|
| Rdson1 | 120 |
|---|
| Rdson2 | |
|---|
| Features / Special Function | |
|---|
| Package | QFN3x3-10 |
|---|
- 3V to 33V Input Voltage Range
- 33V Maximum Output Voltage
- 4A Main MOSFET Current Limit
- 15 µA Shutdown Current (Max.)
- 100 µA Quiescent Current (Typ.)
- Low RDS(ON) for Internal N-Channel MOSFET: 120mΩ
- 1MHz Switching Frequency
- Internal Soft-Start
- ±2% 0.6V Reference
- Cycle-by-Cycle Peak Current Limit
- Overtemperature Protection
- RoHS-Compliant and Halogen-Free
- Compact DFN3mmx3mm-10 Package

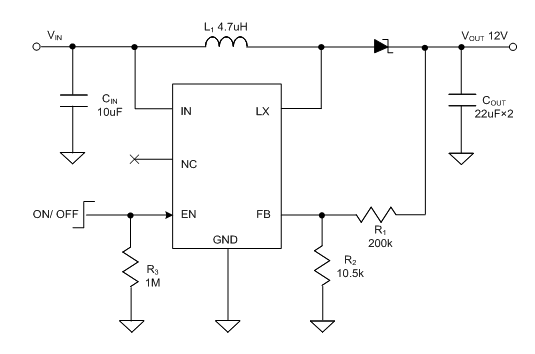

The SY21314 high efficiency step-up regulator operates using current mode control over a wide input voltage range from 3V to 33V. It integrates an N-channel MOSFET with low 120mΩ RDS(ON) to minimize conduction loss.
The 1MHz switching frequency and internal compensation reduce external inductor and capacitor sizes, and the built-in internal soft-start circuitry minimizes inrush current at startup. The device offers overcurrent and thermal shutdown protections.
The SY21314 is available in a compact DFN3x3-10 package.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY21314DBC_1 is intended for evaluating a high efficiency boost regulators SY21314 which is targeted for general step-up applications.
