SY21525JVCS (SY70300JVCS)

Production
5A Per Phase Dual Output PMIC
Datasheet
SY21525JVCS 5A Per Phase Dual Output PMIC Datasheet
Part number SY21525JVCS
Vin (min) (V) 2.5
Vin (max) (V) 5.5
Channel(#) 2
Application Optical module
Features Integrated 4 power stages and dual outputs with 2 phase + 2 phase,Each phase has the capability to deliver up to 5A output current,FPWM operation to reduce output ripple
Package WLCSP2.66×3.89-54
• 2.5V to 5.5V Wide Input Voltage Range
• 2 Phase Dual Output Buck Converter (2+2)
• 5A per Phase Output Current Capability
• I2C Programmable Output Voltages from 0.45V to 2V
• COT Control Achieves Fast Transient Performance
• ±1.0% Accuracy with Remote Sensing
• Fixed-phase Configuration and Continuous Conduction Mode (FPCCM), OTP Programmable Light Load Mode(PFM/FPCCM)
• Supports Phase Shedding if Configured with DCM Mode by Factory OTP
• Supports Startup with Pre-Biased Output Voltage
• Status Feedback with Interrupt Pin
• Reliable OTP/SCP/UVP/OVP Protection
• Compact Package: WLCSP2.66×3.89-54
The SY21525J  is a high-efficiency, dual output with 2+2, synchronous buck regulators. It integrates four synchronous buck converters, each phase is capable of delivering up to 5A continuous output current.
The SY21525J operates over a wide input voltage range from 2.5V to 5.5V and uses instant PWM control for rapid transient response stable operation. Additionally, during startup and voltage adjustments, the device manages the output slew rate to minimize inrush current and output voltage overshoot.
The SY21525J provides undervoltage lockout (UVLO), along with overvoltage (OVP), overcurrent (OCP), and over temperature protections (OTP). In addition to the standard interrupt, chip enable, the SY21525J also supports I2C communication protocol.
The SY21525J is available in a compact WLCSP2.66× 3.89-54 package.

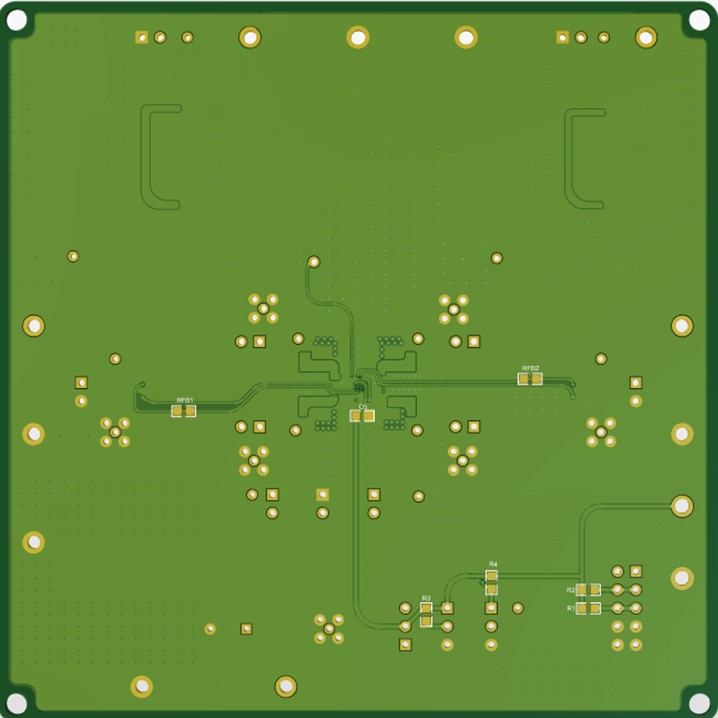

Evaluation Board

  • SY21525J_1

    Photo of evaluation board

  • SY21525J_2

    Photo of evaluation board

  • SY21525J_3

    Photo of evaluation board

  • SY21525J_4

    Photo of evaluation board

  • SY21525J_5

    Photo of evaluation board

  • SY21525J_6

    Photo of evaluation board

EVB_SY21525JVCS

EVB_SY21525JVCS is intended for evaluating 2.5V to 5.5V dual output PMIC.
