Single Stage LED driver, Dimmable, High PF and Low BOM Cos
![]()
- Parameters
- Features
- Description
| Part Number | SY22634AFAC |
|---|
| Description | PSR, QR, CC, Buck-Boost/Flyback, Int. MOS 600V/5Ω, Triac Dimming, single winding |
|---|
| Package | SO8 |
|---|
| Io_max (A) | 0.2 |
|---|
| Input Type | 230Vac |
|---|
| Po_max (W) | 15 |
|---|
| PF (>) | 0.9 |
|---|
| Application | AC Buck-Boost Triac Dim |
|---|
- Compatible with Leading Edge/Trailing Edge Dimmer
- Active Break to Achieve Low Power Application
- High PF without Any Dimmer, PF>0.9
- Internal Dimming Curve 5%~100%
- 600V FET Integrated
- Quasi-Resonant Operation
- Reliable Open/Short LED Protection
- Thermal Fold Back
- Low BOM Cost
- RoHS Compliant and Halogen Free
- Compact Package: SO8
SY22634A is a single-stage driver for LED lighting applications.
SY22634A adopts proprietary techniques to identify whether dimmer applied and dimmer types. Good compatibility is achieved with Leading/Trailing edge dimmer and high PF is achieved without any dimmer.
SY22634A drives the converter in Quasi-Resonant mode to achieve high efficiency. Reliable Open/Short LED protections are integrated.
SY22634A integrates high voltage power FET inside to save driver space further.
SY22634A is available in SO8 package.
Evaluation Board

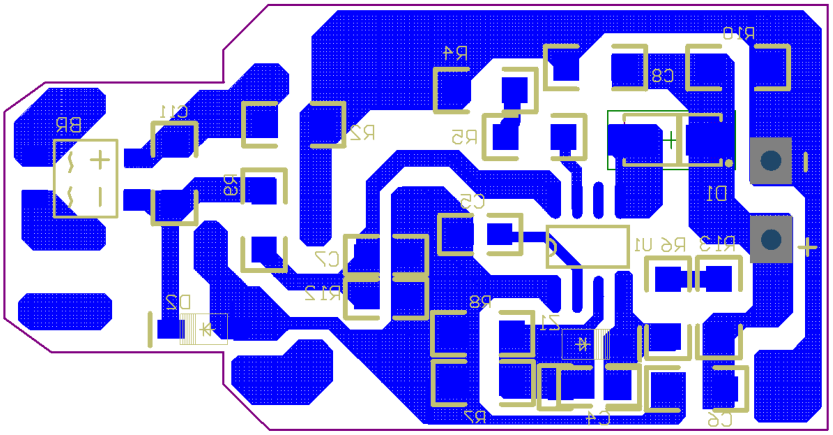

Photo of evaluation board

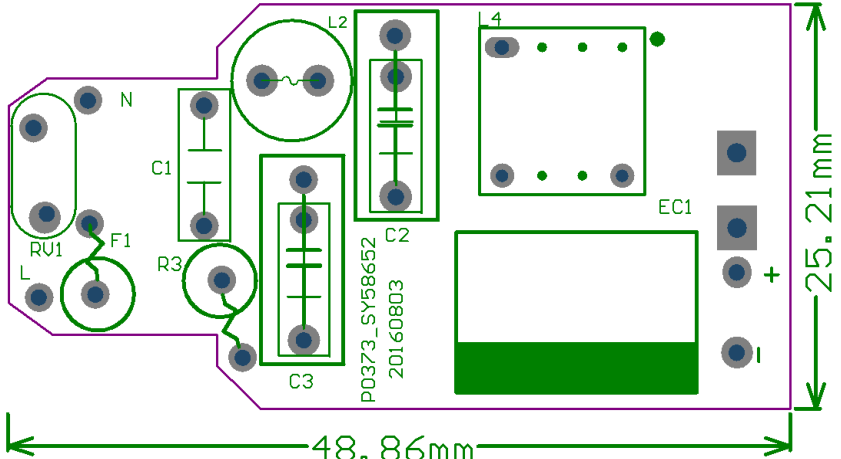

Photo of evaluation board
The EVB_SY22634AFAC is intended for evaluating AC 207~253V input, 132V/110mA output Flyback Regulator For LED Lighting
