Flyback Regulator for LED Lighting
![]()
- Parameters
- Features
- Description
| Part Number | SY22688FAC |
|---|
| Description | Self-Bias, QR, Buck-Boost/Flyback,4 Drain, no aux winding, Int. MOS 600V/11.5Ω |
|---|
| Package | SO8 |
|---|
| Io_max (A) | |
|---|
| Input Type | 120Vac,230Vac |
|---|
| Po_max (W) | 9.5 |
|---|
| PF (>) | 0.5 |
|---|
| Application | AC Flyback non-dim |
|---|
- Integrated 600V MOSFET
- Quasi-Resonant (QR) Mode to Achieve Low Switching Losses
- Primary Side Control to Eliminate the Opto-coupler
- Fast Startup (<300ms)
- No Auxiliary Winding for Feedback
- Reliable Short LED and Open LED Protection
- RoHS Compliant and Halogen Free
- Compact Package: SO8

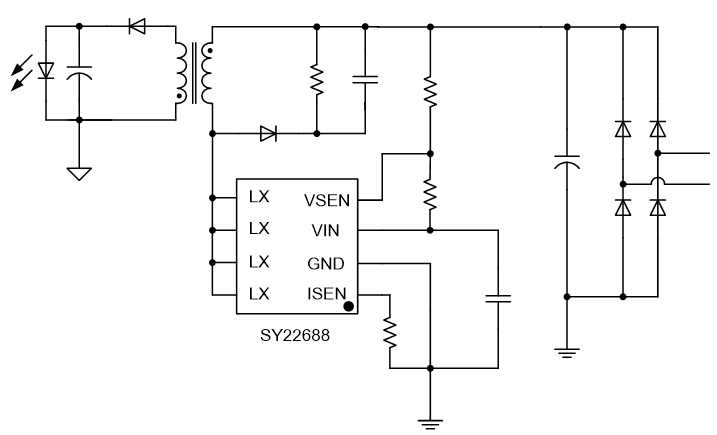

The SY22688 is a Flyback regulator targeting at LED lighting applications.
It integrates a 600V MOSFET to decrease physical volume. It is a primary side controller without applying any secondary feedback circuit for low cost, and drives the Flyback converter in the quasi-resonant mode to achieve higher efficiency. Proprietary self-bias technique saves the bias supply and reduces the startup time.
It integrates open/short LED protection and eliminates the need for opto-coupler or auxiliary winding, thus minimizing the component count and board size.
Evaluation Board

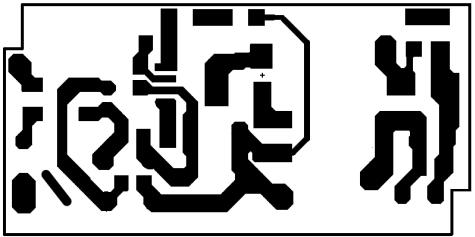

Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY22688FAC is intended for evaluating AC 176~264V input, 30V/240mA output Buck Regulator For LED Lighting
