Single Stage Buck PFC Regulator For LED Lighting
![]()
- Parameters
- Features
- Description
| Part Number | SY22726N1FAC |
|---|
| Description | QR, Buck, accurate OVP, Int. MOS 600V/2.2Ω |
|---|
| Package | SO8 |
|---|
| Io_max (A) | 0.5 |
|---|
| Input Type | 120Vac,230Vac |
|---|
| Po_max (W) | 30 |
|---|
| PF (>) | 0.9 |
|---|
| Application | AC Buck non-dim |
|---|
- Integrated 600V MOSFET
- Valley Turn-on of the MOSFET to Achieve Low Switching Losses
- Power Factor >0.90 with Single-stage Conversion
- Low Start up Current: 15µA Typical
- Quick Start up <500ms
- Reliable Short LED and Open LED Protection
- Power Factor >0.90 with Single-stage Conversion
- RoHS Compliant and Halogen Free
- Compact Package: SO8

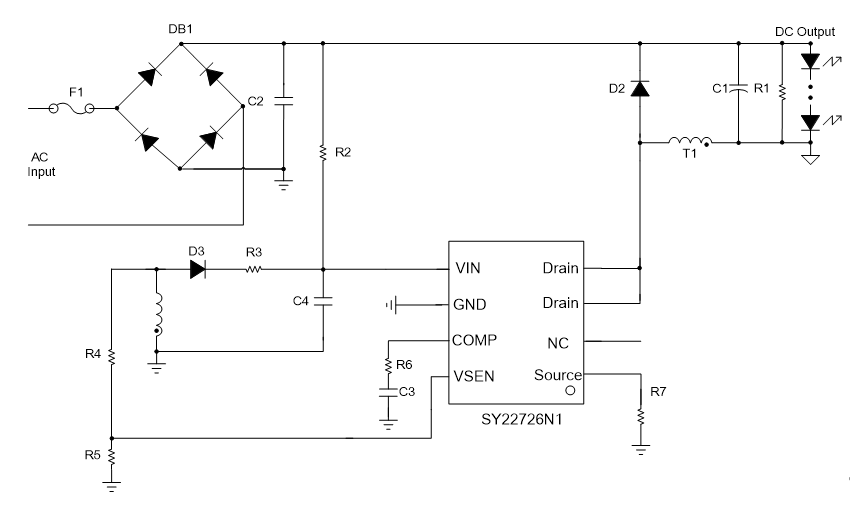

The SY22726N1 is a single stage Buck PFC controller targeting at LED lighting applications. It integrates a 600V MOSFET to decrease physical volume. It adopts the proprietary control architecture to achieve an accurate regulation of LED current, unity power factor, and quasi-resonant valley turn-on high efficiency operation. It adopts special design to achieve quick start up and reliable protection for safety requirement.
It integrates open/short LED protection and eliminates the need for opto-coupler, thus minimizing the component count and board size.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
The EVB_SY22726N1FAC is intended for evaluating AC 90~264V input, 60V/300mA output Buck Regulator For LED Lighting
