SY22731AFAC

Production
Single Stage LED driver Dimmable, High PF and Low BOM Cost
Datasheet
SY22731AFAC Single Stage LED driver Dimmable, High PF and Low BOM Cost Datasheet
    Part NumberSY22731AFAC
    DescriptionPSR, QR, CC, Buck-Boost/Flyback, Int. MOS 350V/1.5Ω, Triac Dimming, single winding
    PackageSO8
    Io_max (A)0.2
    Input Type120Vac
    Po_max (W)16
    PF (>)0.9

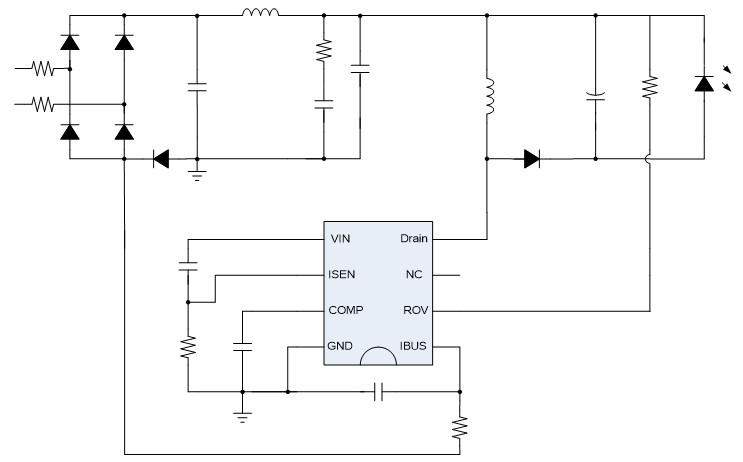

    ApplicationAC Buck-Boost Triac Dim
    • Compatible with Leading Edge/Trailing Edge Dimmer
    • High PF Without any Dimmer, PF>0.9
    • Internal Dimming Curve 5%~100%
    • 350V FET Integrated
    • Quasi-Resonant Operation
    • Reliable Open/Short LED Protection
    • Thermal Fold Back
    • Low BOM Cost
    • RoHS Compliant and Halogen Free
    • Compact Package: SO8


    Evaluation Board

    • 2022-02-21_164114

      Photo of evaluation board

    • 2022-02-21_164128

      Photo of evaluation board

    EVB_SY22731AFAC

    The EVB_SY22731AFAC is intended for evaluating  AC 108~132V input, 80V/170mA output buck-boost Regulator For LED Lighting
