SY22744UFAC

Production
Boost PFC Regulator
Datasheet
SY22744UFAC Boost PFC Regulator Datasheet
    Part NumberSY22744UFAC
    DescriptionPFC, CC, Flyback controller, Color Mixing and Dimming
    PackageSO8
    Io_max (A)
    Input Type230Vac
    Po_max (W)60
    PF (>)0.9
    ApplicationPFC_Boost_CV
    • Integrated 520V MOSFET
    • Quasi-Resonant (QR) Mode to Achieve Low Switching Losses
    • PF>0.95, THD<10%
    • Output Over Voltage Protection
    • Low BOM Cost
    • RoHS Compliant and Halogen Free
    • Compact Package: SO8

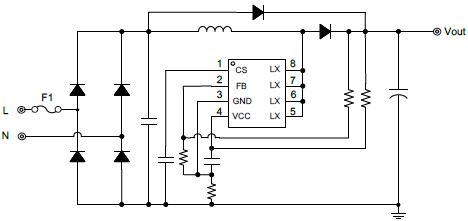

    SY22744U is a single-stage Boost PFC Regulator. Constant tON operation is applied to achieve high PF and no multiplier is need. Quasi-Resonant switching is applied to achieve high efficiency and better EMI performance.

    Evaluation Board

    • 2022-02-17_151615

      Photo of evaluation board

    • 2022-02-17_151625

      Photo of evaluation board

    EVB_SY22744UFAC

    The EVB_SY22744UFAC is intended for evaluating  AC 176~264V input, 400V/100mA output Boost PFC Regulator
