Single Stage Buck PFC Regulator For LED Lighting
![]()
- Parameters
- Features
- Description
| Part Number | SY22778YAGC |
|---|
| Description | QR, Buck, accurate OVP, Int. MOS 600V/2.2Ω |
|---|
| Package | DIP8 |
|---|
| Io_max (A) | 0.5 |
|---|
| Input Type | 120Vac,230Vac |
|---|
| Po_max (W) | 35 |
|---|
| PF (>) | 0.9 |
|---|
| Application | AC Buck non-dim |
|---|
- Integrated 600V MOSFET
- Valley Turn-on of the MOSFET to Achieve Low Switching Losses
- Power Factor >0.90 with Single-stage conversion
- Low start up current: 15µA typical
- Quick start up <500ms
- Reliable short LED and Open LED protection
- Power factor >0.90 with single-stage conversion
- RoHS Compliant and Halogen Free
- Compact package: DIP8

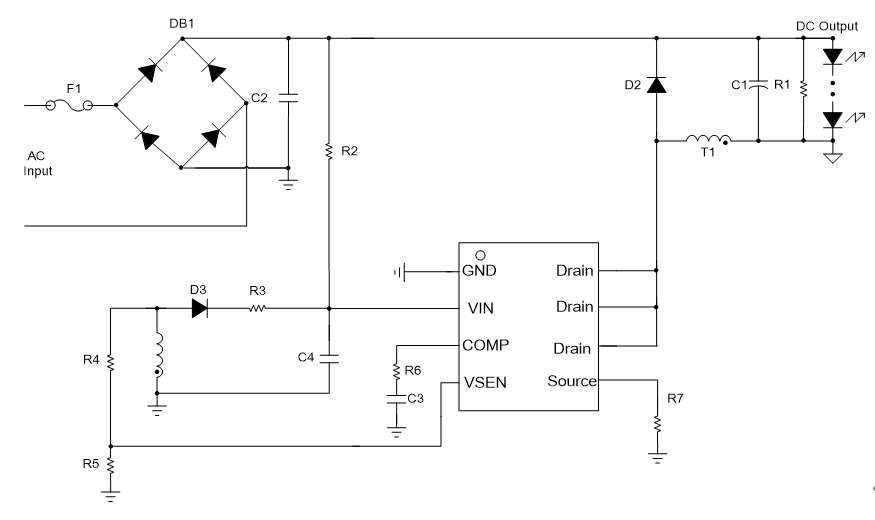

The SY22778Y is a single stage Buck PFC controller targeting at LED lighting applications. It integrates a 600V MOSFET to decrease physical volume. It adopts the proprietary control architecture to achieve an accurate regulation of LED current, unity power factor, and quasi-resonant valley turn-on high efficiency operation. It adopts special design to achieve quick start up and reliable protection for safety requirement.
It integrates open/short LED protection and eliminates the need for opto-coupler, thus minimizing the component count and board size.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
The EVB_SY22778YAGC is intended for evaluating AC 90~264V input, 60V/300mA output Buck Regulator For LED Lighting
