CCM+QR SSR Flyback Controller
- Parameters
- Features
- Description
| Part Number | SY22818AFAP |
|---|
| Input Type | |
|---|
| Topology | Flyback |
|---|
| Application | AC/DC Adapter |
|---|
| Po_max (W) | |
|---|
| Accuracy (max) | |
|---|
| Idrive_max (A) | |
|---|
| No Load Loss | <50mW |
|---|
| Fsw(kHz) | |
|---|
| Protection Mode | Output OVP/UVP, VCC OVP, OLP, External OTP, OTP, |
|---|
| Standards & Certification | |
|---|
| Features / Special Function | CCM+QR SSR Flyback Controller |
|---|
| Package | SO8 |
|---|
| Temp Range | |
|---|
- Wide VCC Operating Range: 10~90V
- HV Start up
- Mixed CCM+QR Control Strategy
- Pseudo Fixed Frequency Control to Eliminate Slope Compensation under CCM
- 65kHz Fixed Switching Frequency under CCM
- 90kHz Switching Frequency Limit under QR Mode
- Frequency Fold Back for High Average Efficiency
- Minimum Switching Frequency Limited to 28kHz
- Burst Control for High Light Load Efficiency
- Adaptive Peak Current Limit for LPS
- Comprehensive Protections Including BO, Output OVP/UVP, VCC OVP, OLP, External OTP, OTP, Secondary SR MOS SCP, etc
- Gate Drive Capability: +70mA/-500mA
- Internal Soft Start Process
- Compact Package: SO8
Evaluation Board

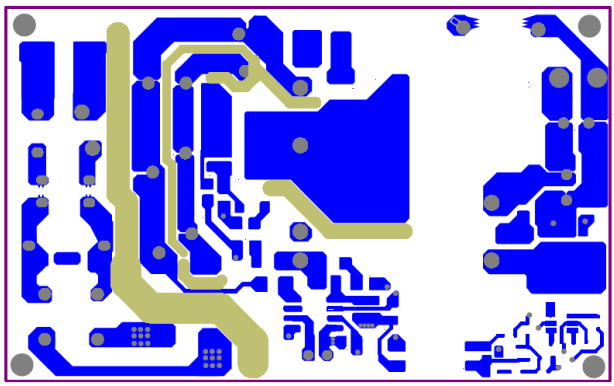

Photo of evaluation board

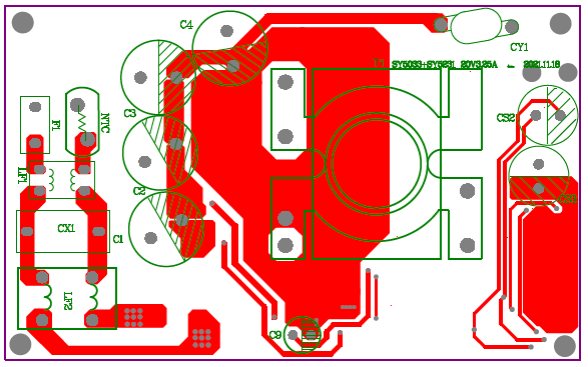

Photo of evaluation board
The EVB_SY22818AFAP is intended for evaluating SSR flyback controller for quick charger
