SY22872CAC

Production
Quick Charger Interface Controller
Datasheet
SY22872CAC Quick Charger Interface Controller Datasheet
    Part NumberSY22872CAC
    ApplicationPD
    Features / Special FunctionQC2.0 Controller
    Po_max (W)24
    Integrated FETsNO
    Protection ModeOCP,OVP
    PackageMSOP8
    Temp Range-40°C to 125°C
    • Supports Quick Charge 2.0 specification HVDCP
    • USB battery charging specification revision 1.2(USB BC 1.2) compatible
    • Integrated voltage reference
    • Built in divider resistor
    • Quite few external components
    • Programmable cable compensation  function
    • Low power consumption
    • Compact package:MSOP8


    Evaluation Board

    • 22872-9

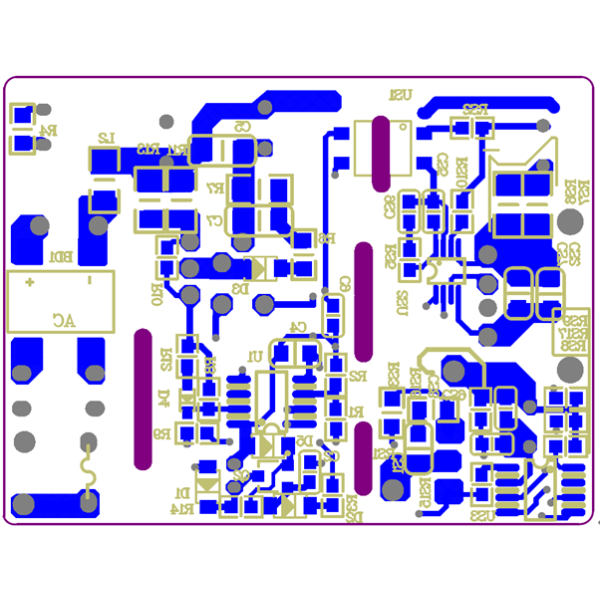

      Photo of evaluation board

    • 22872-8

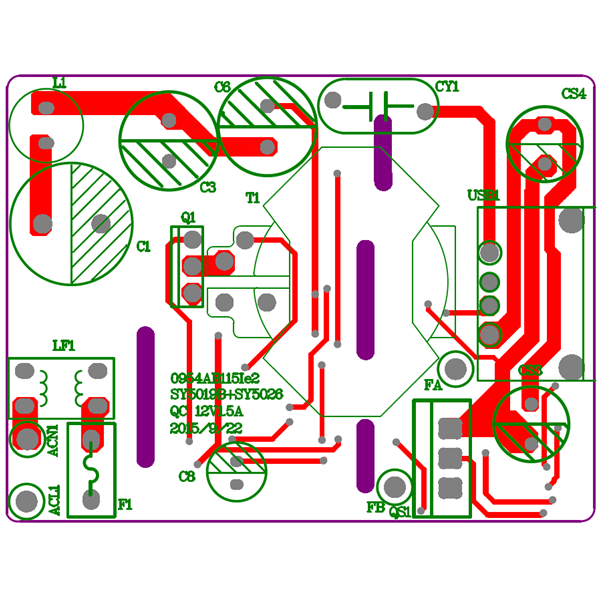

      Photo of evaluation board

    EVB_SY22872CAC

    The EVB_SY22872CAC is used to evaluate a USB high-voltage dedicated charging port (HVDCP) interface controller for the Quick Charge 2.0.
