SY23422ABC

Production
Secondary Side Synchronous Rectification
Datasheet
SY23422ABC Secondary Side Synchronous Rectification Datasheet
    Part NumberSY23422ABC
    DescriptionSR Controller
    Po_max (W)60
    Vo_min (V)5
    Vo_max (V)15
    Integrated FETsNO
    Work ModeDCM,CrCM
    ApplicationPSR,SSR
    Protection ModeOTP
    Features / Special FunctionGate Amplitude Control Technology
    PackageSOT23-6
    • Gate Amplitude Control Technology
    • Secondary-Side Controller Optimized for 5V~15V Systems
    • Suitable for Discontinuous Mode (DCM), Critical Conduction Mode (CrCM)
    • Suitable for Primary Side Control(PSR), Secondary Side Control(SSR)
    • Compact Package:SOT23-6


    Evaluation Board

    • 23422-9

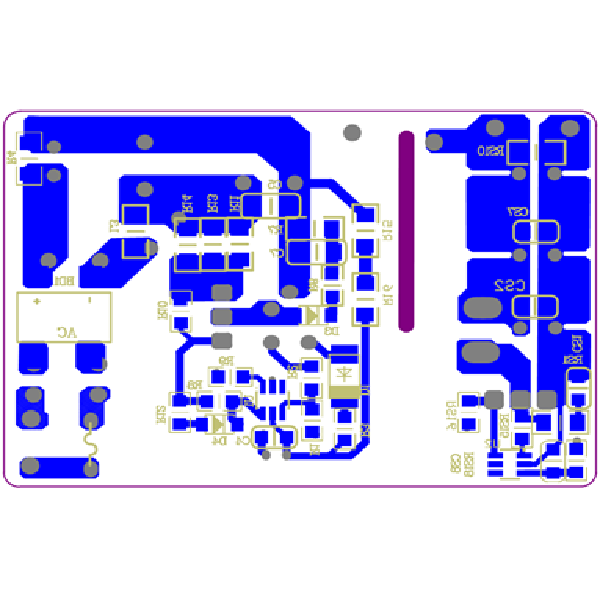

      Photo of evaluation board

    • 23422-8

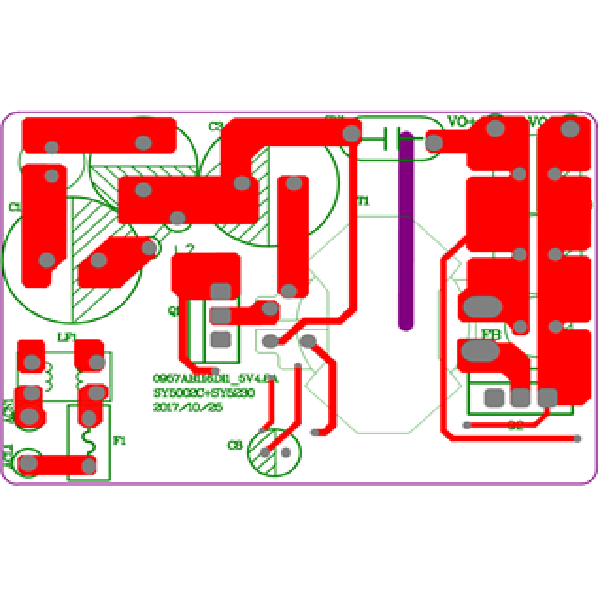

      Photo of evaluation board

    EVB_SY23422ABC

    The EVB_SY23422ABC is used to evaluate a high-performance controller and driver for standard and logic-level N-channel MOSFET power devices used for low-voltage secondary-side synchronous rectification.
