SY24146SGAC (SY6065SGAC)

High Performance, High Fidelity 30W Digital Audio-Power Amplifier

SY24146SGAC High Performance, High Fidelity 30W Digital Audio-Power Amplifier Datasheet

Parameters
Features
Description

Part number	SY24146SGAC
Input type	Digital
Channel(#)	2
Vs (min)(V)	4.5
Vs (max)(V)	28
Load (min)(Ω)	4
Po(W/Ch)	30
THD+N (%)(1kHz 1W)	0.03
SNR (dB)	101
Features	18 band EQ, 3 band and post DRC, 4 I2C address, Headphone driver
Package	TQFP7×7-48E
Operating temperature range(°C)	-10 to 85

2CH Stereo(30W×2BTL)
2.0 BTL Mode or Single-filter PBTL Mode Support
4.5V to 28V PVDD Range
32kHz to 96kHz Sample Rate Support (LJ/RJ/I2S)
I2C Address Selection Pin
Independent Channel Volume Controls with 48dB to Mute
SDATA Generator (I2S Output)
Two DC Blocking Filters
18 PEQs or 12 PEQs + 6 SPEQs Each Channel for Speaker Protection and Speaker Compensation
3 Bands Dynamic Range Control Plus a Post Dynamic Range Control
Loudness Control
Power Level Meter
3-wire I2S Digital Audio Interface without MCLK
Thermal, Over Current, Short Circuit, Short Load, Open Load Protections and EQ/DRC Coefficients Checksum
Support Automatic Audio Sample Rate Detection
Headphone Amplifier

-No Output DC-Blocking Capacitors
-Wide Power Supply Range: 2.1V-5V
-19mW/Ch Output Power into 32Ω at 5V
-Short-Circuit and Thermal Protection and under Voltage Protection

Surface Mount, TQFP 48-Pin, 7mm×7mm

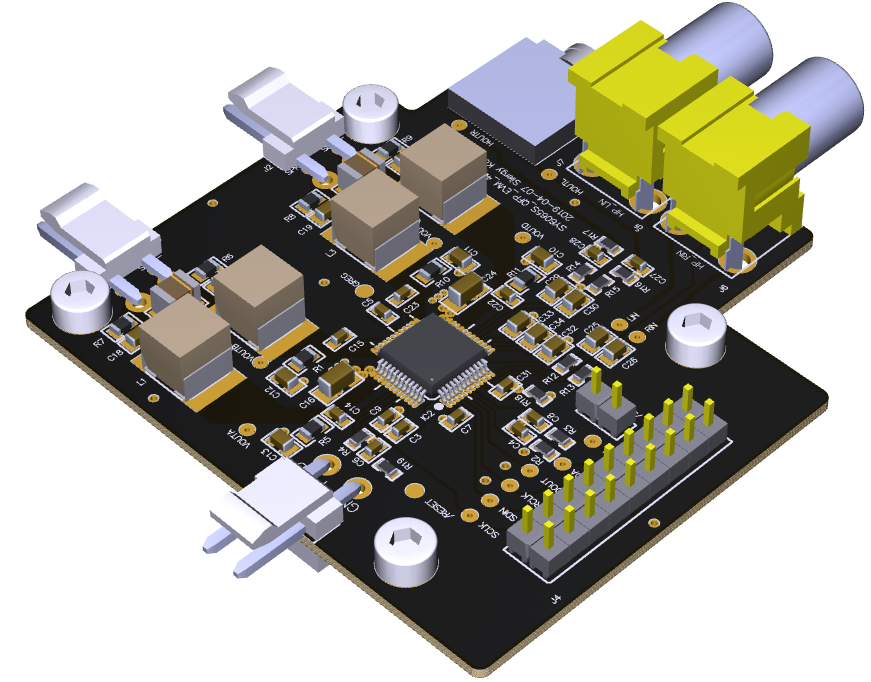

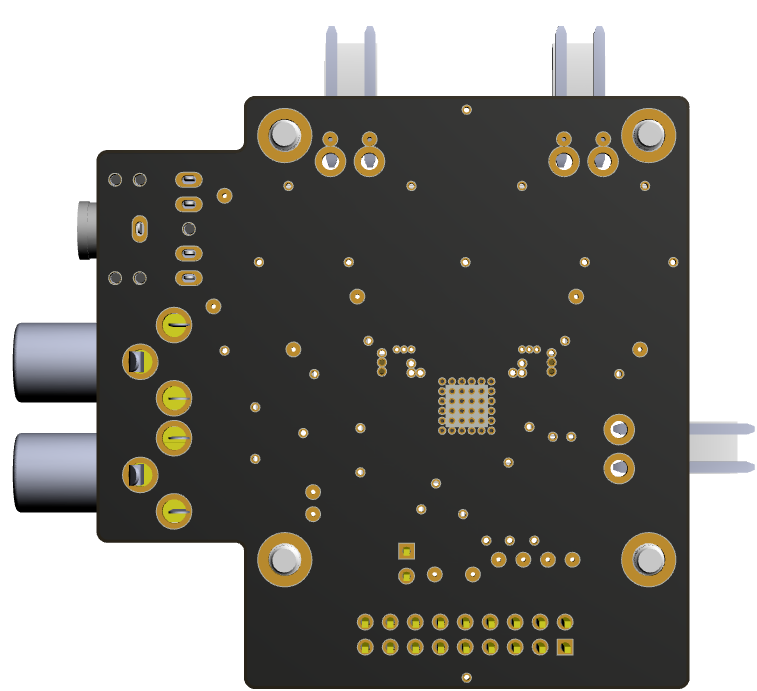

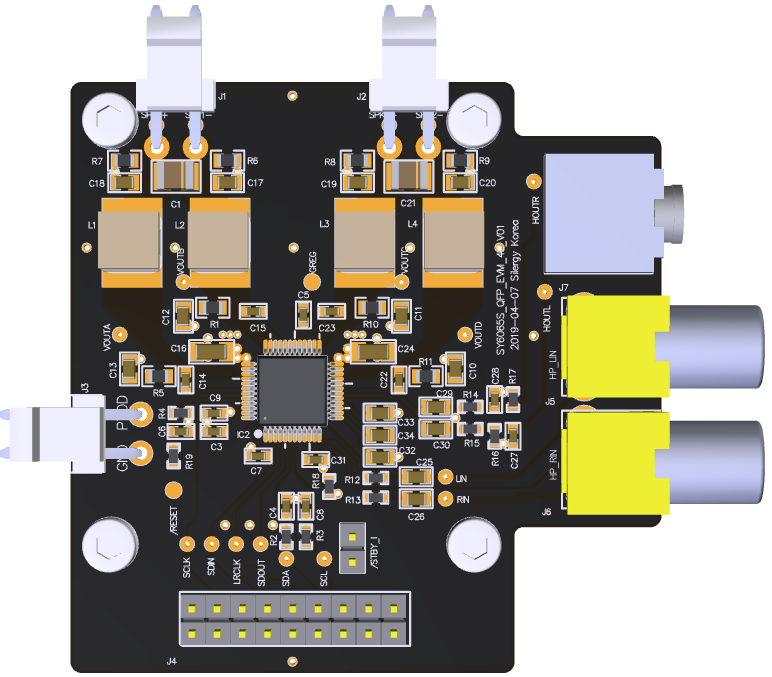

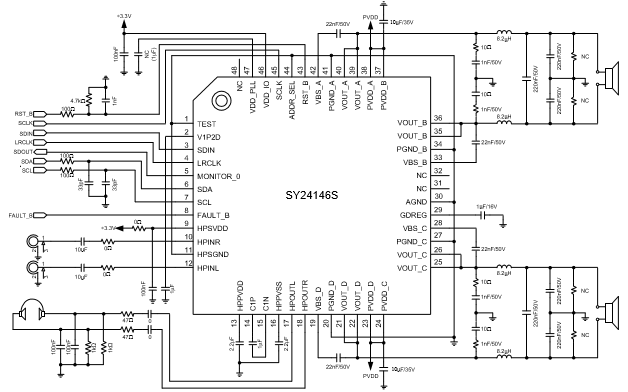

The SY24146S is a 2×30W, digital audio power amplifier for driving bridge-tied stereo speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors. The SY24146S is an I²S slave device receiving all clocks from the external sources.

The SY24146S has the essential audio signal processing functions like dynamic range control, loudness control and parametric equalization.
