SY24640TDD

Production
Current Sensing Comparator with Overcurrent Protection
Datasheet
SY24640TDD Current Sensing Comparator with Overcurrent Protection Datasheet
    Part NumberSY24640TDD
    Description 36V Common Mode Current Sense Comparator
    Vcc_min (V)2.7
    Vcc_max (V)5.5
    CM Sense Range0-36V
    DM Sense Range0-250mV
    Iq (uA)135
    Gain/
    Accuracy (max)/
    Gain Error (max)/
    Offset (max)±500uV
    Features / Special Function3 Delay time, programmable alert threshold
    PackageDFN2x2-10
    • Wide Common Mode Range: 0V to 36V
    • Selectable Response Times: 10μs, 50μs, 100μs
    • Programmable Threshold:
    • -    Adjust Using Single Resistor
    • -    Programmable from 0 mV to 250 mV
    • Accuracy:
    • -    Offset Voltage: ±500μV (Max)
    • -    Offset Voltage Drift: 0.5μV/°C (Max)
    • Selectable Hysteresis: 2 mV, 4 mV, 8 mV
    • Active Quiescent Current: 135μA (Typ)
    • Selectable Disable Mode
    • -    Disabled Quiescent Current: 1.2μA (Max)
    • -    Disabled Input Bias Current: 500nA (Max)
    • Open Drain Output with Latch Mode Available

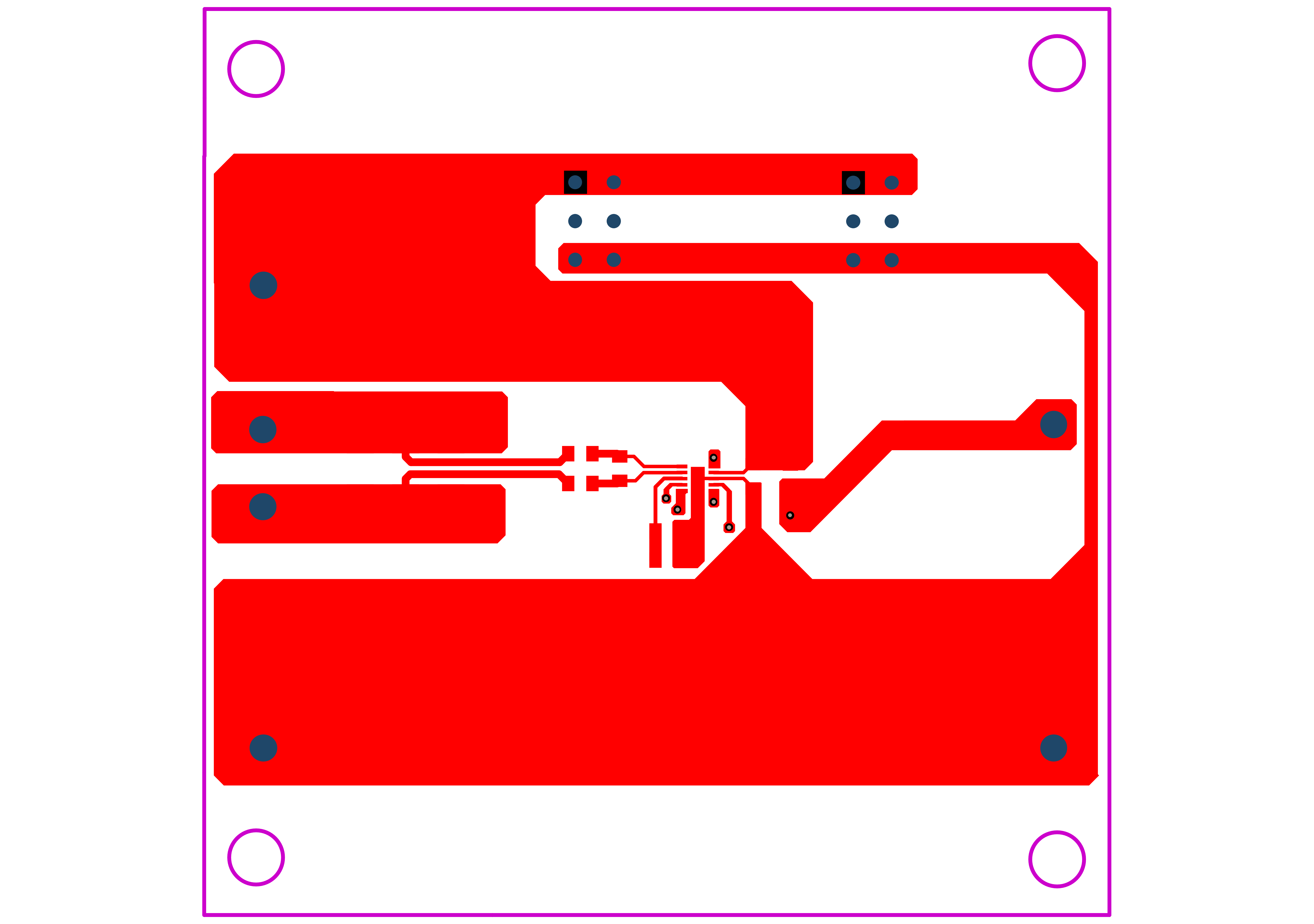

    Evaluation Board

    • 1

      Photo of evaluation board

    • 3

      Photo of evaluation board

    • 2

      Photo of evaluation board

    EVB_SY24640TDD

    The EVB_SY24640TDD is intended for evaluating Current Sensing Comparator with Overcurrent Protection.
