High Efficiency 300kHz, 25V Boost/SEPIC Controller with Output Current Limit
- Parameters
- Features
- Description
| Part Number | SY26612AFHC |
|---|
| Vin_min (V) | 3 |
|---|
| Vin_max (V) | 25 |
|---|
| Io_max (A) | |
|---|
| Channels | 1 |
|---|
| Vref (V) | 1 |
|---|
| Vref Accuracy | ±8% |
|---|
| Fsw (MHz) | 0.3 |
|---|
| Iq (uA) | 130 |
|---|
| Temp Range | -40°C to 125°C |
|---|
| Topology | |
|---|
| Soft Start | |
|---|
| Features / Special Function | Current mode DC/DC controller targeted for both Boost and SEPIC applications with DC Output Current Limit |
|---|
| Package | SSOP10 |
|---|
- Input Voltage Range 3V to 25V
- 300kHz Fixed Switching Frequency
- Output Current Limit
- External Compensation
- Programmable Soft-start Limits the Inrush Current
- Integrated Low Side Driver: 1.5A Sourcing and 3A Sinking
- RoHS Compliant and Halogen Free
- Compact Package: SSOP10
The SY26612A is a current mode DC/DC controller targeted for both Boost and SEPIC applications. The SY26612A has accurate output current limit. External compensation provides flexible adjustment of control loops for different applications. The internal low side driver is capable of sourcing 1.5A and sinking 3A current.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

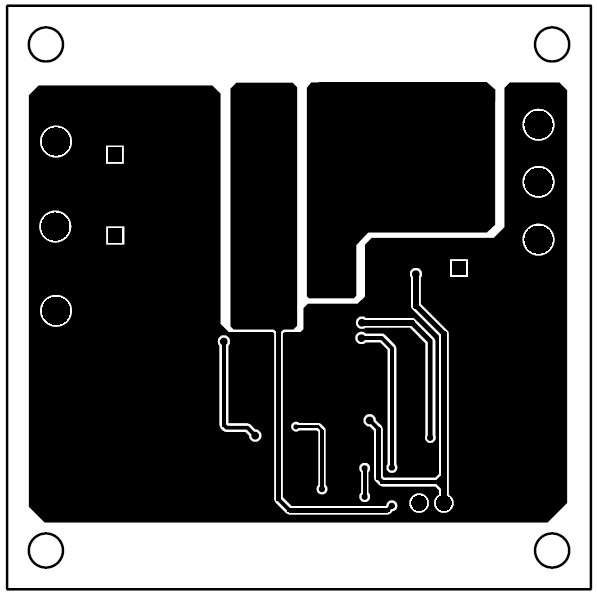

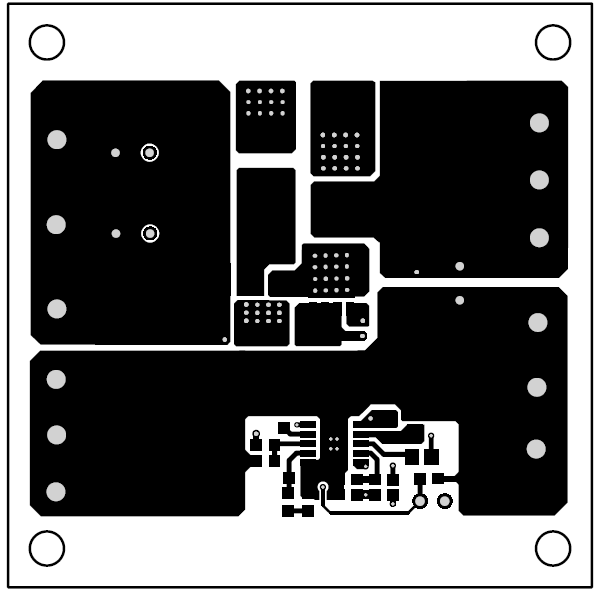

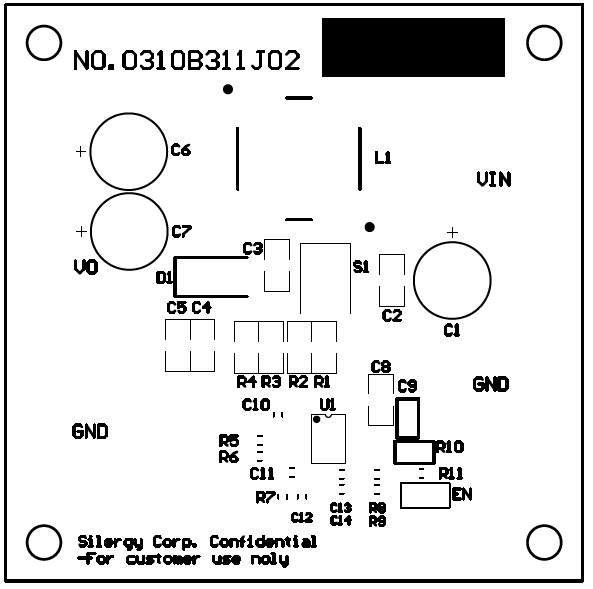

The EVB_SY26612AFHC_1 is intended for evaluating the SEPIC applications with 5~18V input, 2.5A output current limit, and 12V output voltage.
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

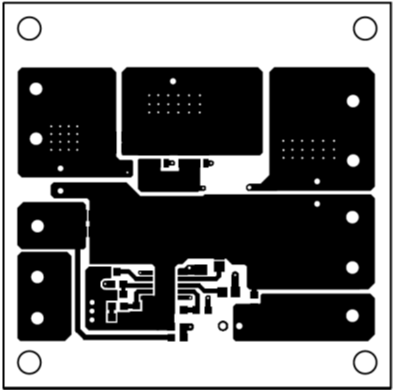

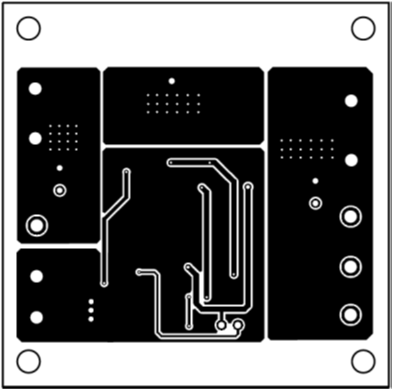

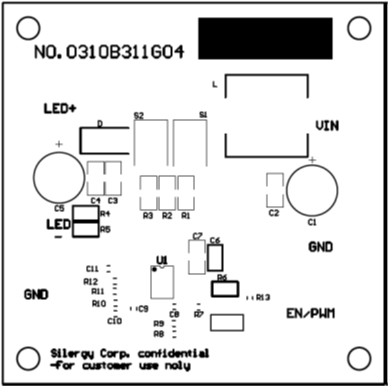

The EVB_SY26612AFHC_2 is intended for evaulating the Boost applications with 5V input, 1A output current limit, and 24V output voltage.
