DC/DC Flyback Controller
with Primary Side Control for LED Lighting
and Analog Dimming Mode
![]()
- Parameters
- Features
- Description
| Part number |
SY5882SFAP |
| Description |
CC, flyback controller, PWM/analog dimming 2.5%, Vout 2% |
| Topology |
Flyback |
| Dimming mode |
Analog, PWM |
| PF (>) |
0.5 |
| Input type |
400VDC |
| Iout (max) (A) |
|
| Pout (max) (W) |
150 |
| Package |
SO8 |
| Application |
Flyback, PWM/Analog dimming |
- 2.5%~100.0% Dimming Range
- CV Mode for Bias Supply when PWM=0.0%
- Wide Range Output Voltage Application
- Good Load Regulation
- Primary Side Control Eliminates the Opto-coupler
- Valley Turn-on of the Primary MOSFET to Achieve Low Switching Losses
- 200mA Sourcing Current and 600mA Sinking Current Drive Capability
- Low Start up Current: 34μA Typical
- Reliable Short LED and Open LED Protection
- Low Power Frequency Ripple
- Compact Package: SO8
The SY5882S is a DC/DC Flyback controller targeting at LED Dimming applications, which can achieve up to 2.5% dimming level and high precision for all loading range. It adapts to a wide range of output voltage applications and has good load regulation. It is a primary side controller without applying any secondary feedback circuit for low cost, and drives the converter in the quasiresonant mode to achieve higher efficiency. It keeps the converter in peak current control to achieve low power frequency ripple.
Evaluation Board
-

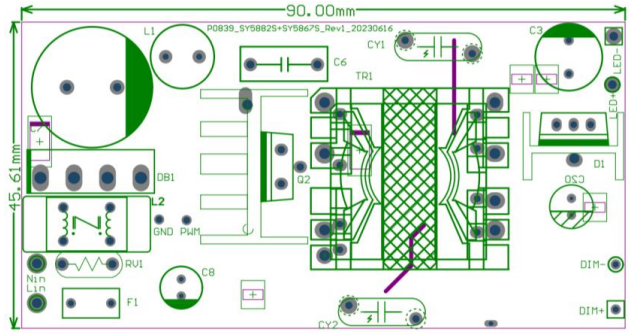

Photo of evaluation board
-

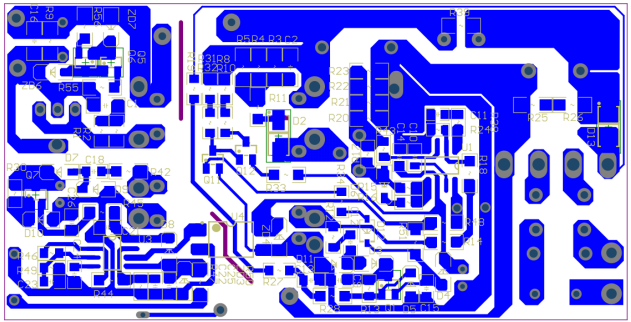

Photo of evaluation board
The EVB_SY5882SFAP is intended for evaluating DC/DC Flyback Controller with Primary Side Control for LED Lighting and Analog Dimming Mode
