Boost PFC Controller
integrates 0~10V transformer driver for LED Lighting
![]()
- Parameters
- Features
- Description
| Part number |
SY5987FAP |
| Description |
CC, boost PFC controller, 0 to 10V dimming |
| Topology |
Boost |
| Dimming mode |
0 to 10V |
| PF (>) |
0.9 |
| Input type |
120VAC, 277VAC |
| Iout (max) (A) |
|
| Pout (max) (W) |
300 |
| Package |
SO8 |
| Application |
Boost, 0 to 10V dimming, PFC |
- Dimming Range from 5% to100%
- Integrated Dimming Transformer Driver Enables Isolation between the LED Driver and the Dimming Controller
- MOSFET Valley Turn-ON Reduces Switching Losses
- Integraed High Voltage Start-up Function Start-up Time<300ms
- Low Standby Power<500mW
- Reliable Short LED and Open LED Protections
- Power Factor >0.90
- Internal High Current MOSFET Driver: 0.19A Sourcing and 0.6A Sinking
- Compact Package: SO8
The SY5987 is a Boost PFC controller used to drive LEDs in the isolated dimming applications. Using a voltage generated by an external dimming controller, the LEDs can be dimmed between 5% and 100% (fully ON). The device uses a Constant On Time (COT) control to achieve a high power factor. It integrates a transformer driver to simplify the design and enable the use of an isolation barrier between a 0~10V dimming controller and the LED string.
Evaluation Board
-

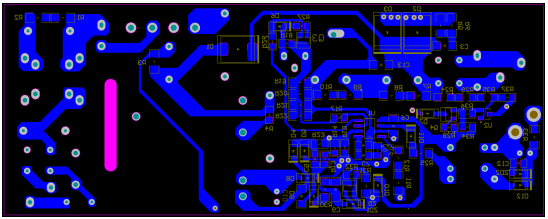

Photo of evaluation board
-

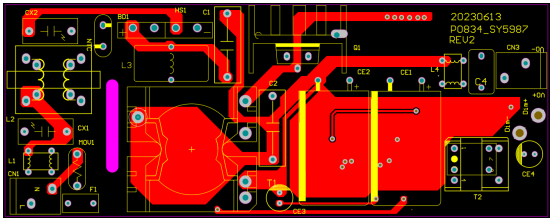

Photo of evaluation board
The EVB_SY5987FAP is intended for evaluating Boost Controller with Integrates 0~10V Transformer Driver
