SY70202KNSG

Production
High Efficiency and High Integration PMIC for SSD System
Datasheet
SY70202KNSG High Efficiency and High Integration PMIC for SSD System Datasheet
Part number SY70202KNSG
Vin (min) (V) 2.8
Vin (max) (V) 3.7
Channel(#) 4 Chs Buck+2 Chs LDO
Application SSD
Features 4 Chs Buck and 2 Chs LDO, 3.4MHz I2C, OVP/SCP/OTP, Auto PWM/PFM or forced PWM controlled
Package BGA3.35×3.1-34
• Wide Input Voltage Range
 -- VIN = 2.8V to 3.7V
• Channel 1 Synchronous Buck:
 -- 4A Maximum Output Current Capability
 -- 1.6V to 3.0V Programmable, 25mV Step
 -- Bypass Mode or Buck Mode Selection
 -- 40mΩ/40mΩ RDS_ON
• Channel 2 Synchronous Buck:
 -- 3A Maximum Output Current Capability
 -- 0.75V to 1.85V Programmable, 10mV Step
 -- 80mΩ/50mΩ RDS_ON
• Channel 3 Synchronous Buck:
 -- 4A Maximum Output Current Capability
 -- 0.5V to 1.2V Programmable, 10mV Step
 -- 50mΩ/20mΩ RDS_ON
• Channel 4 Synchronous Buck:
 -- 2A Maximum Output Current Capability
 -- 0.807V to 1.907V Programmable, 50mV Step
 -- 80mΩ/50mΩ RDS_ON
• Channel 5 LDO1:
 -- 0.4A Maximum Output Current Capability
 -- 1.0V to 2.7V Programmable, 50mV Step
 -- Bypass Mode or LDO Mode Selection
• Channel 6 LDO2:
 -- 0.4A Maximum Output Current Capability
 -- 1.0V to 2.7V Programmable, 50mV Step
 -- Bypass Mode or LDO Mode Selection
• I2C Interface up to 3.4MHz
• Auto PWM/PFM or Forced PWM Controlled by I2C Interface
• Output Voltage Level of Each Channel Controlled by I2C Interface
• Reliable Protections:
 -- Input/Output Over Voltage Protection (OVP)
 -- Short Circuit Protection (SCP)
 -- Over Temperature Protection (OTP)
• Compact Package: BGA3.35×3.1-34
• MSL Rating: MSL3

The SY70202K is an integrated power management unit. It is designed to power a wide range of microcontrollers and solid-state drive applications. The SY70202K includes 4 buck converters with integrated power FETs and 2 low-dropout regulators (LDOs). The Buck1, LDO1, and LDO2 can also be configured as load switch. The PMIC supports a variety of default configurations. It is programmed at the factory with a default configuration.

The SY70202K supports combination of multiple configurations, including output voltage, startup time, system level sequencing, sleep modes, deep sleep modes, and operating modes etc. Each of the regulators can be configured for a wide range of output voltages through the I2C interface. Each buck converter requires only three small components to operate at switching frequency of 2MHz. All regulators can be configured for a wide range of output voltages through the I2C interface.

The SY70202K is available in a BGA3.35×3.1-34 package.

Evaluation Board

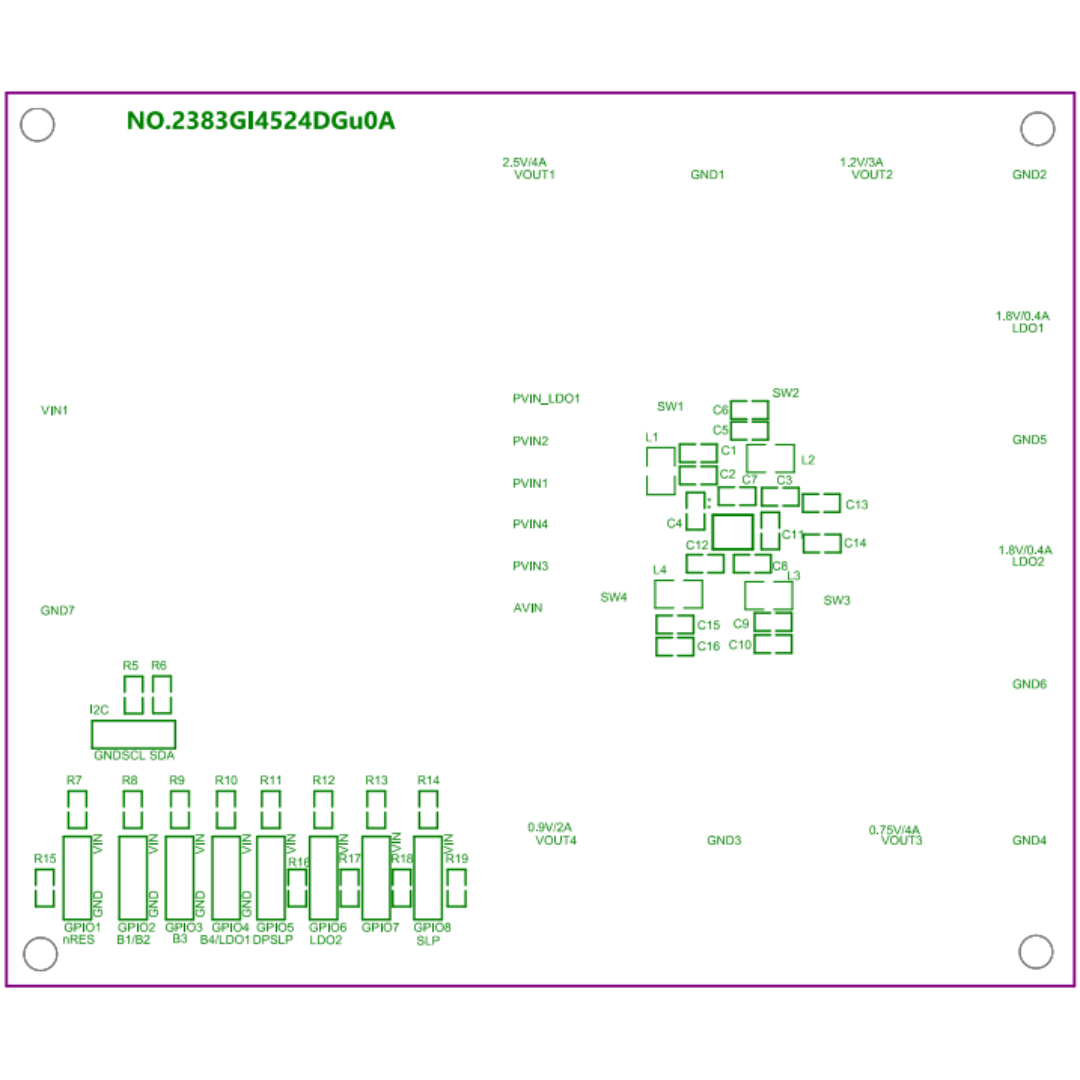

  • SY70202K_1

    Photo of evaluation board

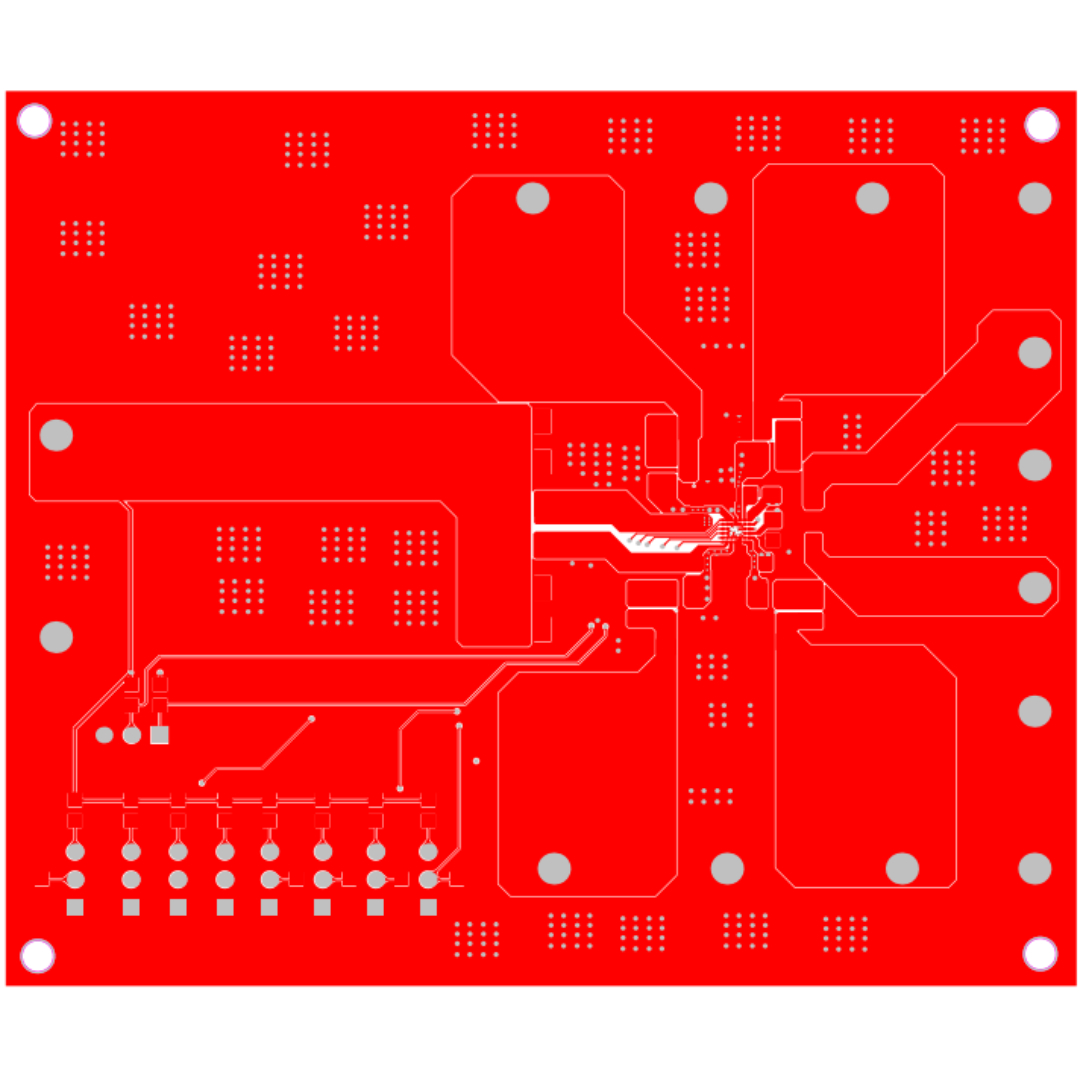

  • SY70202K_2

    Photo of evaluation board

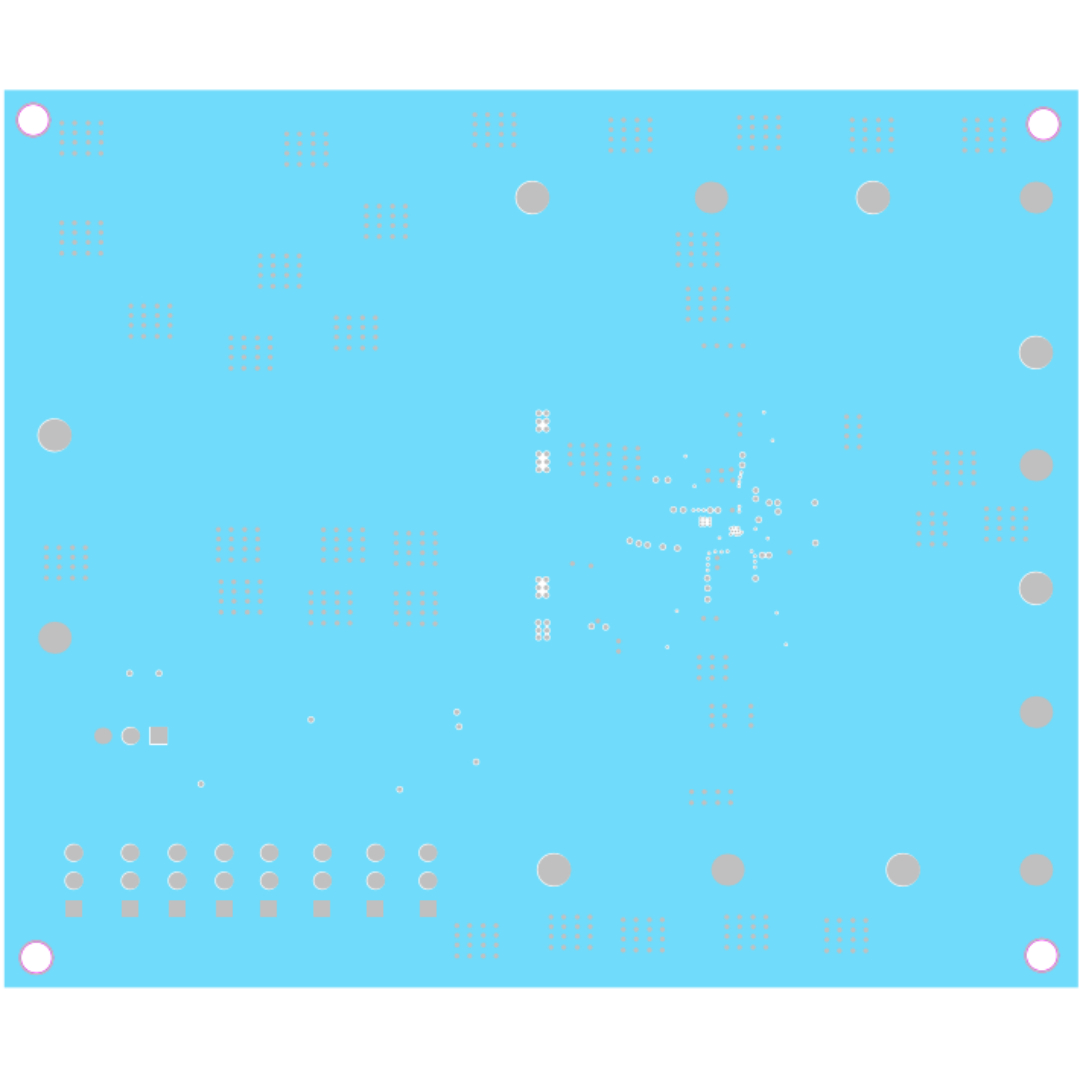

  • SY70202K_3

    Photo of evaluation board

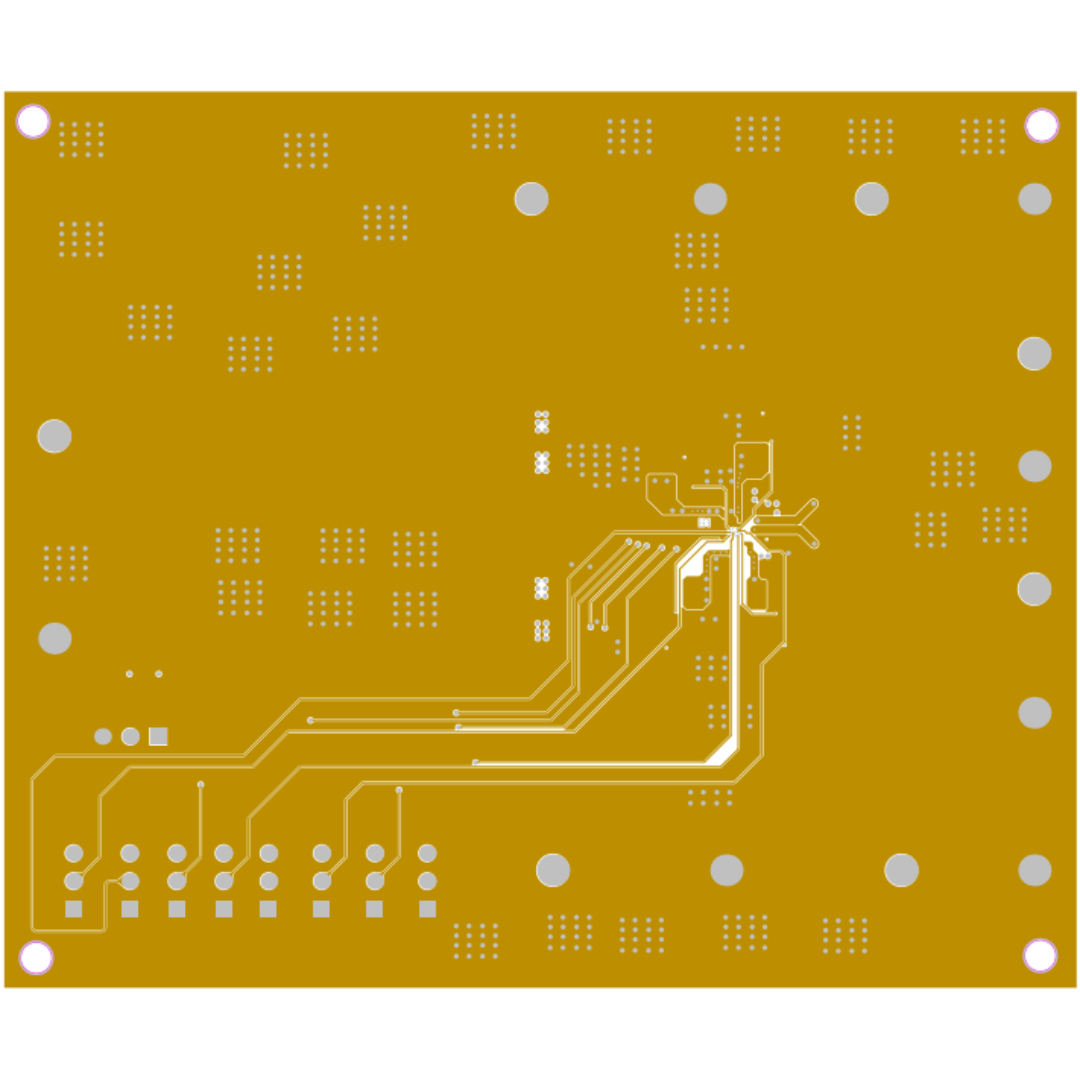

  • SY70202K_4

    Photo of evaluation board

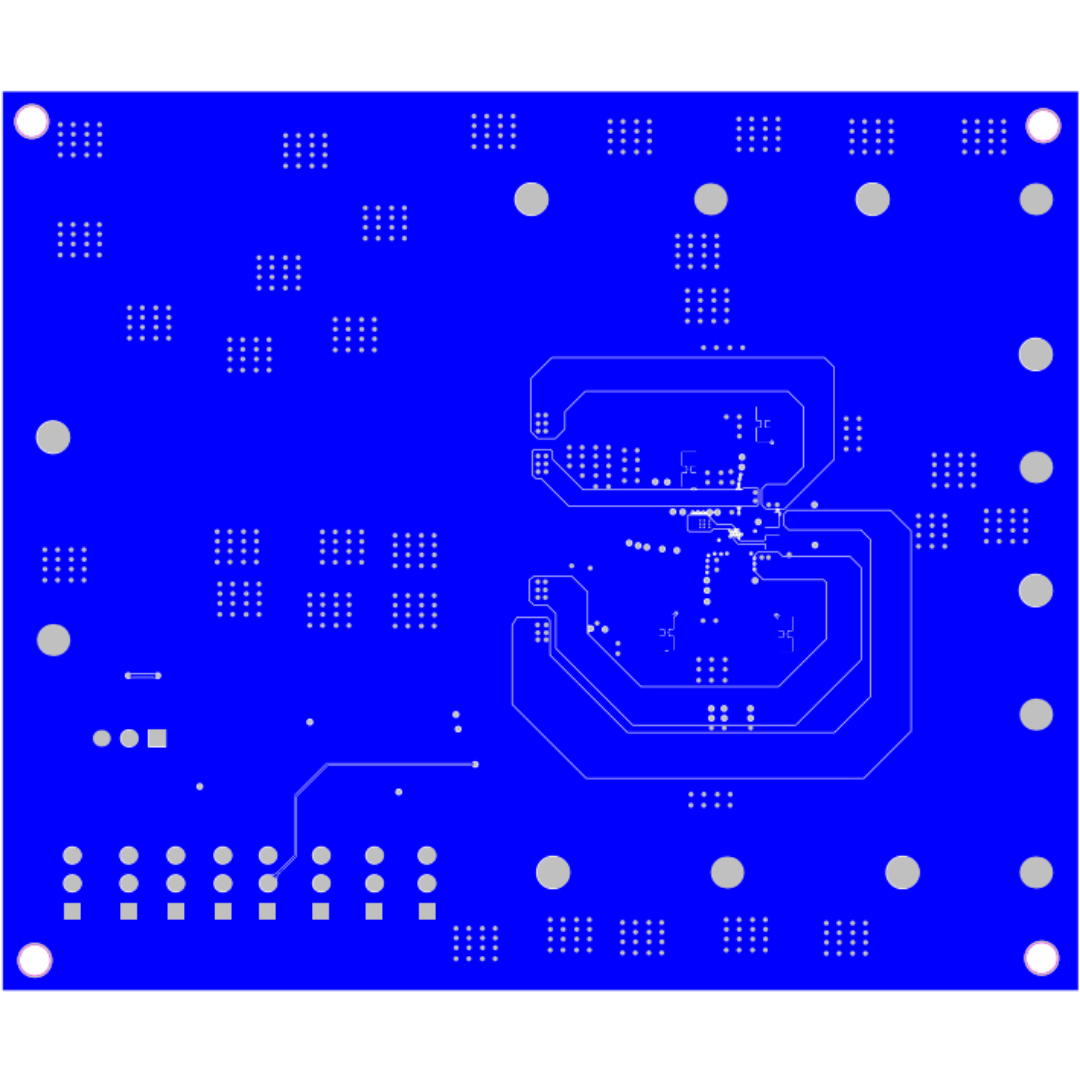

  • SY70202K_5

    Photo of evaluation board

EVB_SY70202KNSG

The EVB_SY70202KNSG is intended for evaluating high efficiency and high integration PMIC for SSD system.
